Excel Category 6 Cable U/UTP 24AWG Eca PVC 305m Box - Grey
Part Code: 100-070
This product is no longer available. Please browse the website for alternatives or contact our Sales Team for assistance.

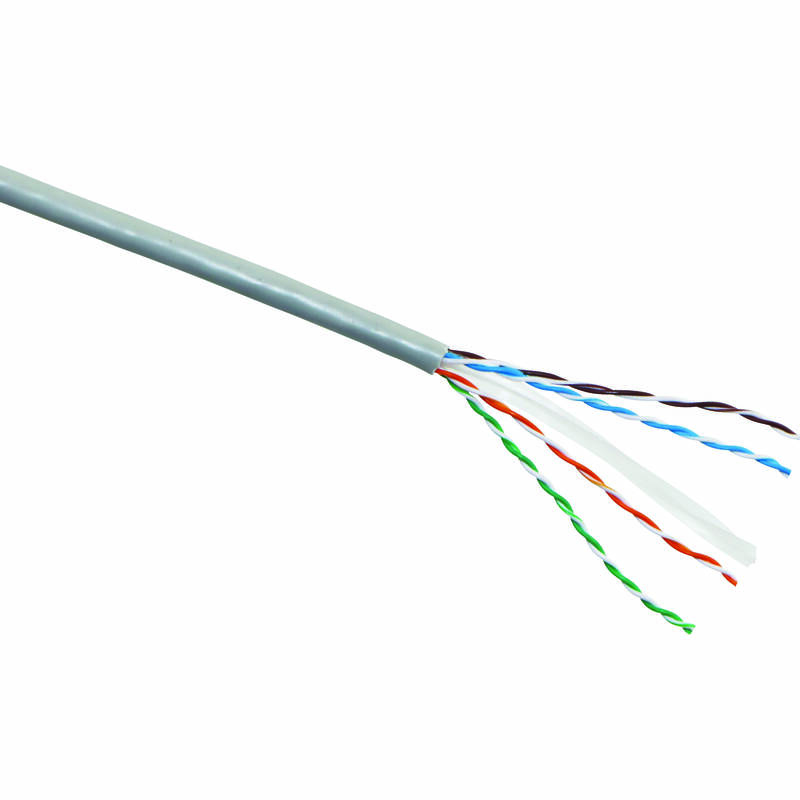

Excel Category 6 Unscreened PVC cables are manufactured and tested to the TIA/EIA 568‐B.2‐1, EN50173‐1 and ISO/ IEC 11801 Category 6 specifications. Each cable consists of 8 colour coded polyethylene insulated conductors. These are twisted together to form 4 pairs with varying lay lengths. These pairs are then formed around a central ‘X’ shaped polyethylene filler, which assists in maintaining and enhancing the cable performance.
The print legend on the cable now includes information regarding the DOP number, Test and Classification of the cable for traceability.
| Conductor surface | Bare |
| Conductor category | Class 1 = solid |
| Total number of cores | 8 |
| Stranding element | Pairs |
| Specification core insulation | Polyethylene (PE) |
| Core identification | Colour |
| Overall screening | None |
| Conductor screening | None |
| Outer sheath material | Polyvinyl chloride (PVC) |
| Outer sheath colour | Grey |
| Reaction-to-fire class according to EN 13501-6 | Eca |
| Outer diameter approx. | 6.2 mm |
| Installation Temperature Range | 0...50 °C |
| Operating Temperature Range | -20...60 °C |
| Category | 6 |
| NVP value | 69 % |
Key Features
- EC Verified
- Fast feed box
- Sequential metre markings (305-0)
- Euroclass Eca
