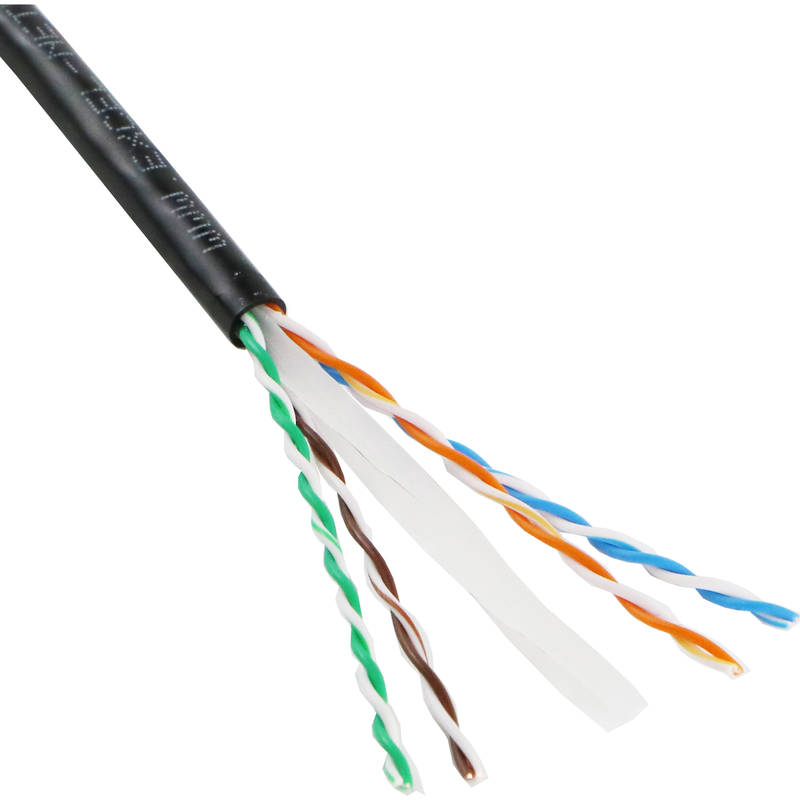

Excel Solid Cat6 Cable U/UTP PE External Grade Fca 305 m Box Black
Part Code: 100-100
Excel Cat6 ethernet cable U/UTP PE external Grade Fca manufactured and tested to the TIA/EIA 568‐B.2‐1, EN50173‐1 and ISO/ IEC 11801 Cat6 specifications, sold in 305 m boxes. Each cable consists of 8 colour coded solid copper conductors twisted together to form four pairs.
These are then formed around a central X-shaped polyethylene centre with the whole cable produced in a PE sheath.
| Conductor surface | Bare |
| AWG size | 23 |
| Conductor category | Class 1 = solid |
| Total number of cores | 8 |
| Stranding element | Pairs |
| Specification core insulation | Polyethylene (PE) |
| Core identification | Colour |
| Overall screening | None |
| Conductor screening | None |
| Outer sheath material | PE |
| Outer sheath colour | Black |
| Flame retardant according to IEC 60332-1-2 | yes |
| Reaction-to-fire class according to EN 13501-6 | Fca |
| Outer diameter approx. | 6.3 mm |
| Operating Temperature Range | -10...75 °C |
| Category | 6 |
| NVP value | 69 % |
Key Features
- Cat6 external grade cable for external use
- No conductor screening
- Outer sheath colour black
- Reaction-to-fire class according to EN 13501-6: Fca
- 23 AWG size conductors
- UV Exposure tested in accordance with ASTM G154 & G155
- CIBSE TM65 Embodied Carbon: 64.808 kg CO2e
