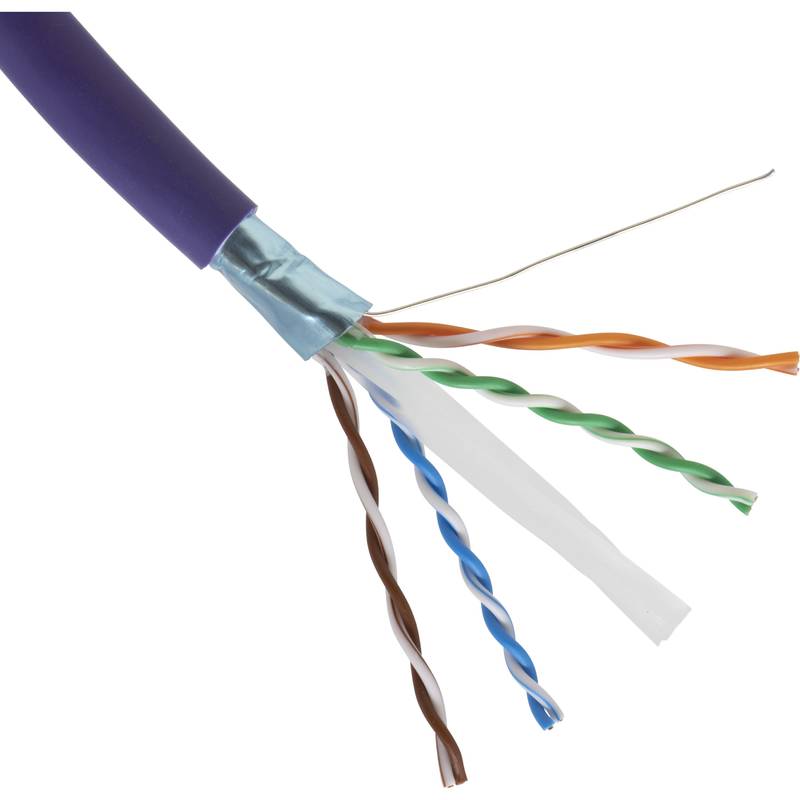

Excel Solid Cat6 Cable F/UTP LSOH CPR Euroclass Dca 305 m Reel Violet
Part Code: 100-076
Excel solid Cat6 ethernet cable F/UTP LSOH CPR Euroclass Dca manufactured and tested to the TIA/EIA 568‐B.2‐1, EN50173‐1 and ISO/ IEC 11801 Cat 6 specifications, 305 m or 500 m. Each cable consists of 8 colour coded solid copper conductors twisted together to form four pairs.
These are then formed around a central X-shaped polyethylene centre with the whole cable produced in a LSOH sheath.
| Conductor surface | Bare |
| AWG size | 23 |
| Conductor category | Class 1 = solid |
| Total number of cores | 8 |
| Stranding element | Pairs |
| Specification core insulation | Polyethylene (PE) |
| Core identification | Colour |
| Overall screening | Foil |
| Conductor screening | None |
| Outer sheath material | Copolymer, thermoplastic (LS0H) |
| Outer sheath colour | Violet |
| Flame retardant according to IEC 60332-1-2 | yes |
| Reaction-to-fire class according to EN 13501-6 | Dca |
| Smoke development class according to EN 13501-6 | s2 |
| Euro class flaming droplets/particles according to EN 13501-6 | d2 |
| Euro class acidity according to EN 13501-6 | a1 |
| Outer diameter approx. | 7.2 mm |
| Installation Temperature Range | 0...50 °C |
| Operating Temperature Range | -10...60 °C |
| Category | 6 |
| NVP value | 70 % |
Key Features
- Cat6 Solid Copper Cable
- F/UTP Overall Foil Screening
- No Conductor Screening
- Outer sheath colour Violet
- Reaction-to-fire class according to EN 13501-6: Dca
- Smoke development class according to EN 13501-6: s2
- CIBSE TM65 Embodied Carbon: 132.584 kg CO2e
