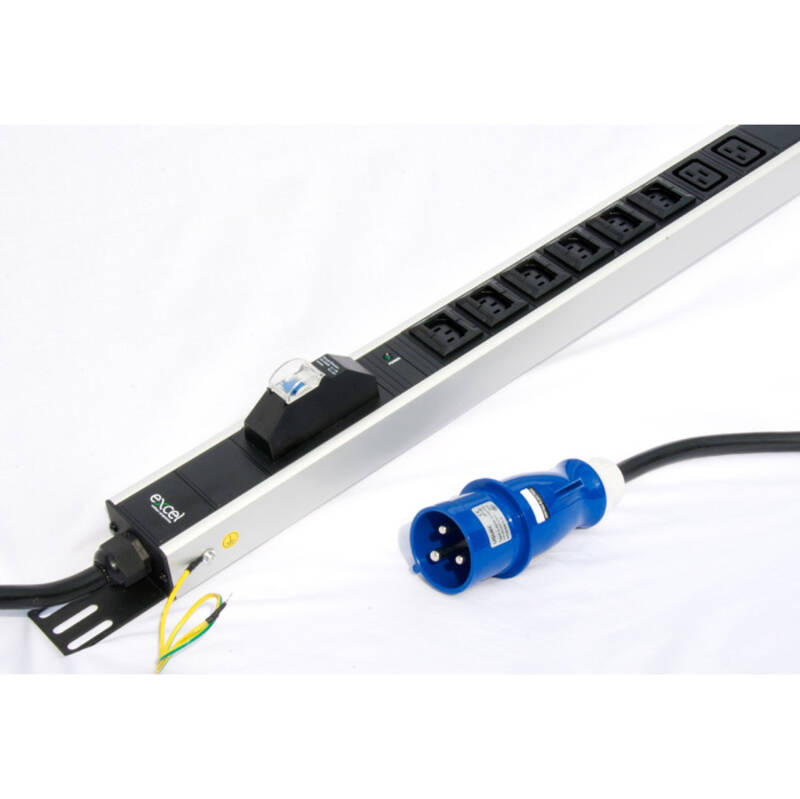

Excel 24 Way Vert PDU 20x C13 + 4x C19 Socket 32A IEC 60309 Plug Ammeter Display

Part Code: 555-232-AMMETER

This product is no longer available. Please browse the website for alternatives or contact our Sales Team for assistance.

Excel range of power distribution units are designed for installation and use within 19" networking cabinets and enclosures. Each unit comprises a high quality aluminium extruded housing into which are loaded up to 24 sockets.

The range of units are higher density vertical mounted with each unit fitted with a 32A master air circuit breaker and LED indicator to confirm power to the unit.

Mounting direction Vertical
Type of electric plug connection 32 Amp - EN6039 Style (BS4343)
Cable length 3 m
Number of C13 socket outlets 20
Number of C19 socket outlets 4
Length 1375 mm
Width 44.4 mm
Height 62 mm
Supply voltage 250 V
Surge Protected yes
With LED indication yes
Ammeter yes
With mounting bracket yes

Key Features

  • Choice of C13 and C19 sockets
  • With AMMETER Display
  • 3 metre PVC input lead is terminated with a 32 Amp rated IEC 60309 2P+E plug
  • CE compliant, RoHS complaint
  • 32A Master air circuit breaker
  • External earth facility
