Excel Plus Cat6 24 Port Unscreened Patch Panel 1U LSA Punch Down Black

Part Code: 100-372

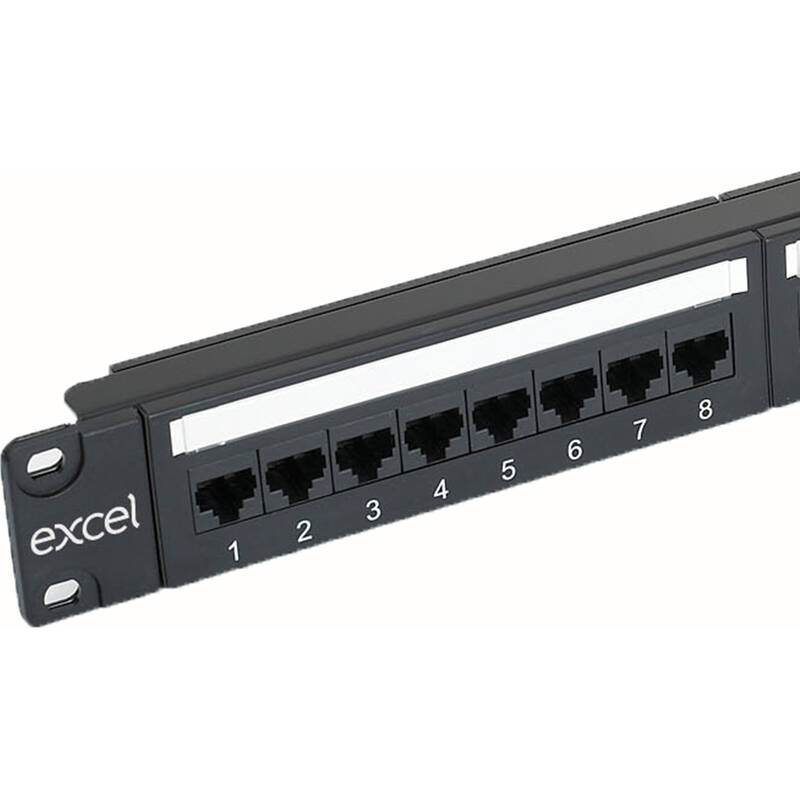

100-372 Excel Plus Cat6 24 Port Unscreened Patch Panel 1U LSA Punch Down Black, available as part of a range of Cat6 Patch Panels in stock at Mayflex. The Excel Plus Category 6 Unscreened Twisted Pair Patch Panels are available in 24 & 48 Port versions to accommodate installation requirements. Each panel consists of a number of 8 way blocks of RJ45 sockets, housed in a high quality plastic moulding. To the front of the panel this moulding contains the new easy to use slide label system.

Each block of 8 sockets has its own label which can be removed from either side of the covered label field. The label strip itself is protected by a clear, tough plastic insert.

Termination can be made using LSA compatible tooling, cable tie bridges are positioned between the IDC blocks to relieve cable stress. Installation can be further enhanced by use of the optional rear cable management tray which is attached quickly and easily to the panel without the need for fixings.

  • Available in 24 or 48 ports
  • Backwards compatible
  • Rear cable management
  • LSA Style Termination Blocks
  • Cage nuts and mini cable ties included
  • T568A/B Wiring Configuration
Number of ports – loaded 24
Type of connector RJ45 8(8)
Shielded no
Category 6
Connection type LSA
Number of rack units (RU) 1
Colour Black
Mounting method 19 inch mounting
Height 44 mm
Width 482 mm
Depth 29.7 mm
Product Data Sheet (English)
BIM data
100-372

Key Features

  • Number of ports – loaded: 24
  • Type of connector: RJ45 8(8)
  • Shielded: no
  • Category: 6
  • Connection type: LSA
  • Number of rack units (RU): 1
