aura 22AWG 1 Pair Belden Alternative Multicore Cable LSZH Eca Type 8761 250m Grey
Part Code: 2201POFP-250
This product is no longer available. Please browse the website for alternatives or contact our Sales Team for assistance.

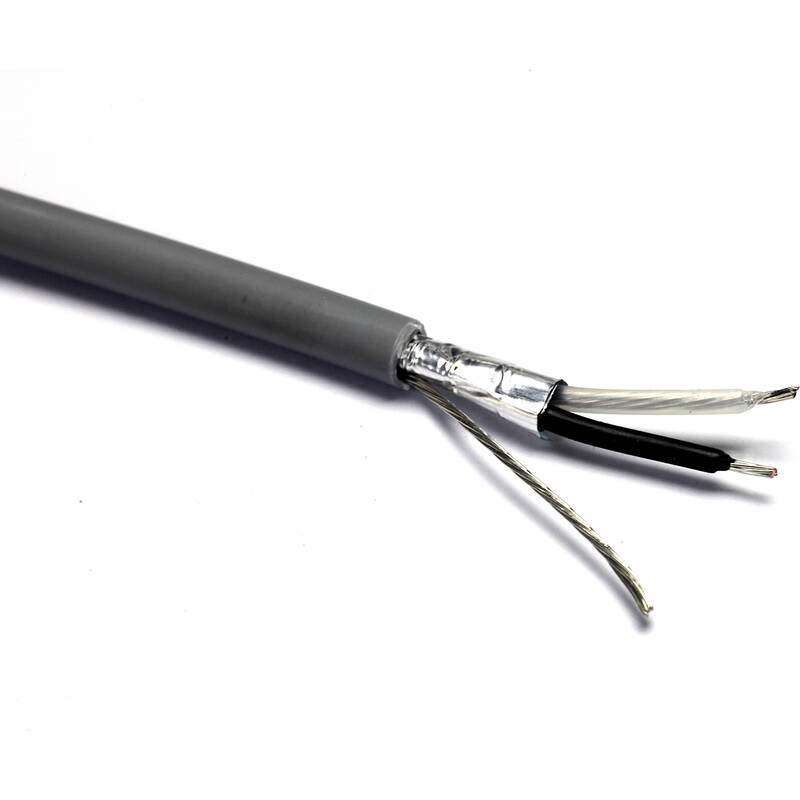

Aura Multicore cables manufactured and designed for sound broadcast, audio and instrumentation offering an alternative Belden style cable, with tinned copper conductors. A single pair cable with 22 AWG size conductors, single Drain Wire and overall foil shield in an LSZH Grey Sheath rated as Euroclass Eca.
| Diameter of conductor | TC 0.25 ±0.008 x 7 |
| AWG size | 22 |
| Core identification | White/Black |
| Overall screening | Foil |
| Outer sheath material | LSZH |
| Outer sheath colour | Grey |
| Flame retardant according to IEC 60332-1-2 | yes |
| Halogen free (acc. IEC 60754-2) | yes |
| Reaction-to-fire class according to EN 13501-6 | Eca |
| Outer diameter approx. | 4.45mm ± 0.2 |
| Min. permitted bending radius, stationary application/permanent installation | 50 mm |
| Operating Temperature Range | -20...70 °C |
| Category | Multipair Unscreened |
Key Features
- Ideal for RS232 Long Distance Control Cable
- Eca Euro Class LSZH Cable
- DoP and Test Class printed on Cable
- Temperature Rating -20°C to 70°C
- Voltage Rating 300V Max
- Single Pair Overall Foil Cable
