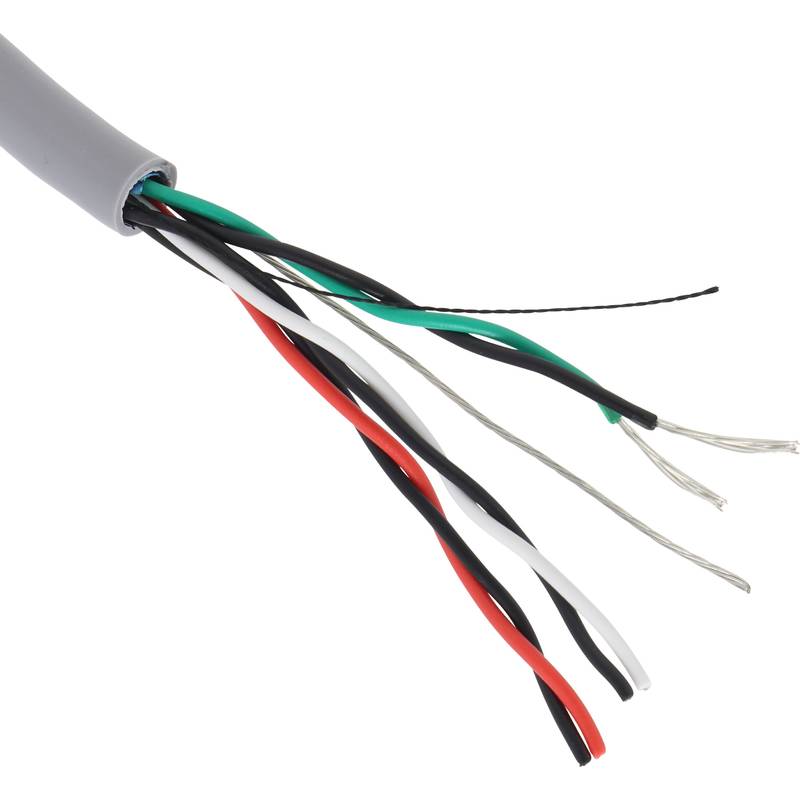

aura 24AWG 3 Pair Belden Alternative Multicore Cable LSZH Eca Type 9503 Per Metre Grey

Part Code: 2403POFV

Aura Multicore cables manufactured and designed for sound broadcast, audio and instrumentation offering an alternative Belden style cable, with tinned copper conductors. A triple pair cable with 24 AWG size conductors, single Drain Wire and overall foil shield in an LSZH Grey Sheath rated as Euroclass Eca.

Diameter of conductor TC 0.20 ±0.008 x 7
AWG size 24
Core identification Red/Black, White/Black, Green/Black
Overall screening Foil
Outer sheath material LSZH
Outer sheath colour Grey
Flame retardant according to IEC 60332-1-2 yes
Halogen free (acc. IEC 60754-2) yes
Reaction-to-fire class according to EN 13501-6 Eca
Outer diameter approx. 5.90mm ± 0.2
Min. permitted bending radius, stationary application/permanent installation 50 mm
Operating Temperature Range -20...70 °C
Category Multipair Overall Screened

Key Features

  • Ideal for access control and POS installations
  • Eca Euro Class LSZH Cable
  • DoP and Test Class printed on Cable
  • Temperature Rating -20 °C to 70 °C
  • Voltage Rating 300 V Max
  • Three Pair Overall Foil Cable
  • CIBSE TM65 Embodied Carbon: 0.291 kg CO2e
