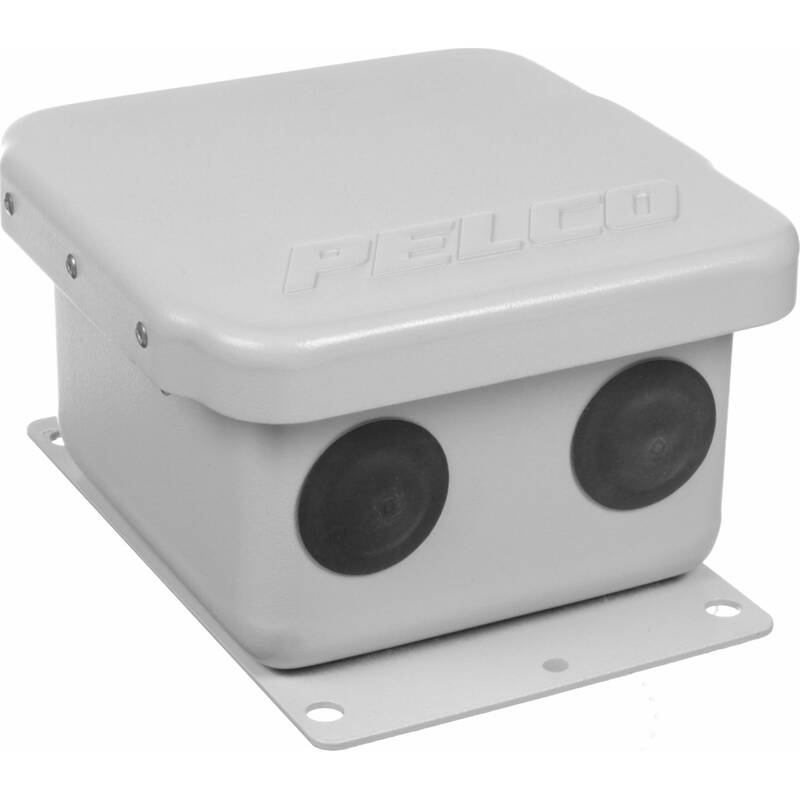

Pelco 1 fused Output Total Capacity of 4A 120/240 VAC Input 24/26/28 VAC Output.

Part Code: WCS1-4

This product is no longer available. Please browse the website for alternatives or contact our Sales Team for assistance.

The WCS1-4 has one fused output and is capable of handling up to 4 A (100 VA) of total load. The WCS4-20 has four fused outputs and is capable of handling up to 20 A (480 VA) of total load.

  • 4A Capacities
  • 1 Outputs
  • Selectable Input Voltage
  • 24 VAC Output or 28 VAC Output for Longer Wire Runs
  • Meets NEMA Type 4X/IP66 Standards for Weatherproof Enclosure
  • AC Power Indicator with Power On/Off Switch
  • Compatible with Cameras, Domes, and Pan/Tilts
Voltage type of supply voltage AC
Max. output current 1 4 A
Rated supply voltage at AC 50 Hz 100...240 V
Rated supply voltage at AC 60 Hz 100...240 V
Direct mounting possible yes
IP-rating IP66
Degree of protection (NEMA) 4X

Key Features

  • Voltage type of supply voltage: AC
  • Max. output current 1: 4 A
  • Rated supply voltage at AC 50 Hz: 100...240 V
  • Rated supply voltage at AC 60 Hz: 100...240 V
  • Direct mounting possible: yes
  • IP-rating: IP66
