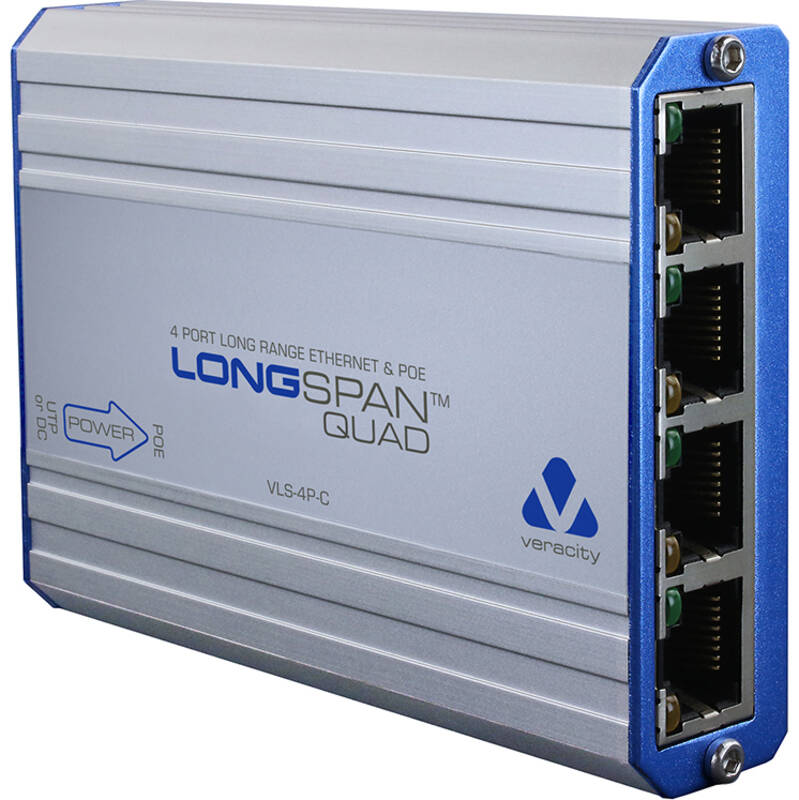

LONGSPAN Quad (long-range POE-in, 4 POE-out)

IP cameras can demand peak bandwidth several times their average data rate, especially in low-light or with high scene activity. LONGSPAN Quad is designed to work with any LONGSPAN Base unit to provide high-speed connections (with POE) for four IP devices such as cameras, VoIP or access control, at up to 820 metres (2,690 feet) over a single network cable, supporting the full 200Mbps required (100Mbps up plus 100Mbps down) for 100BASE-T Ethernet. This supplies POE over the network cable, providing a total LONGSPAN Duo POE output budget of up to 25W at 600m and 15W at 800m. Optionally, a LONGSPAN Lite (no POE) can be used at the base end and a local PSU can power the Quad unit for a maximum POE output budget of 25W per port. LONGSPAN devices self-configure for the best performance every time they are connected. No user setup, no DIP switch settings, and no system pairings are required. Veracity’s SAFEVIEW™ technology provides instant visible confirmation of LONGSPAN Quad’s status, power and diagnostics. This information is also available at the base end, when delivering POE from LONGSPAN Base units. For more information and distance calculations please check the datasheet.
