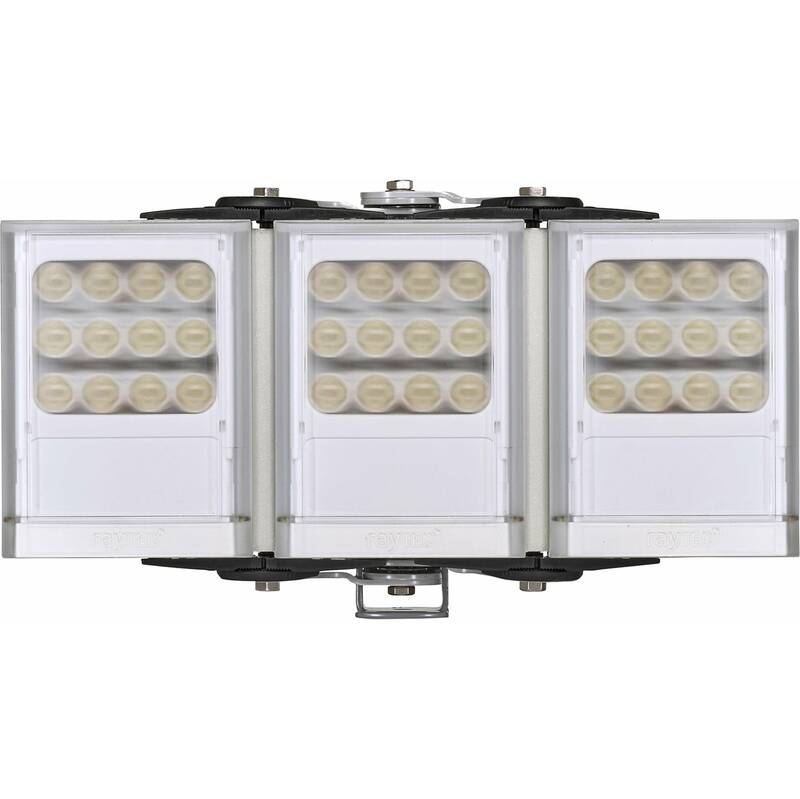

Raytec VAR2-W4-3 Medium Range White-Light Illuminator
Part Code: VAR2-W4-3
VARIO2 is the next generation of Infra-Red and White-Light illuminators from Raytec. Using the latest PLATINUM Elite SMT LEDs, VARIO2 allows cameras to generate longer illumination distances using less power. VARIO2 features an interchangeable lens system with Hot-spot Reduction Technology to deliver highly even illumination where it is most needed. With the optional hand-held remote control, VARIO2 also makes installation and commissioning quicker, easier and safer. The VARIO2 w4-3 Adaptive Illumination White-Light series delivers maximum distances up to 190m (623ft).
- Low Voltage White-Light Illuminators
- PLATINUM Elite SMT LED Technology
- VARIO Interchangeable Lens System
- Angles 10-120 degrees from 1 product
- Hot-spot Reduction Technology (HRT)
- VARIO Remote Control (optional)
- Adaptive Illumination
- Advanced Security Settings
Type of light | White light |
Effective range | 61...190 m |
Angle | 10...60 ° |
Maximum system power | 72 W |
IP-rating | IP66 |
Height | 182 mm |
Width | 318 mm |
Depth | 67 mm |
Mounting method | Wall |
Operating temperature | -50...50 °C |
Cable length | 2.5 m |
Colour | Silver |
Remote controllable function | yes |
Key Features
- Type of light: White light
- Effective range: 61...190 m
- Angle: 10...60 °
- Maximum system power: 72 W
- IP-rating: IP66
- Height: 182 mm
