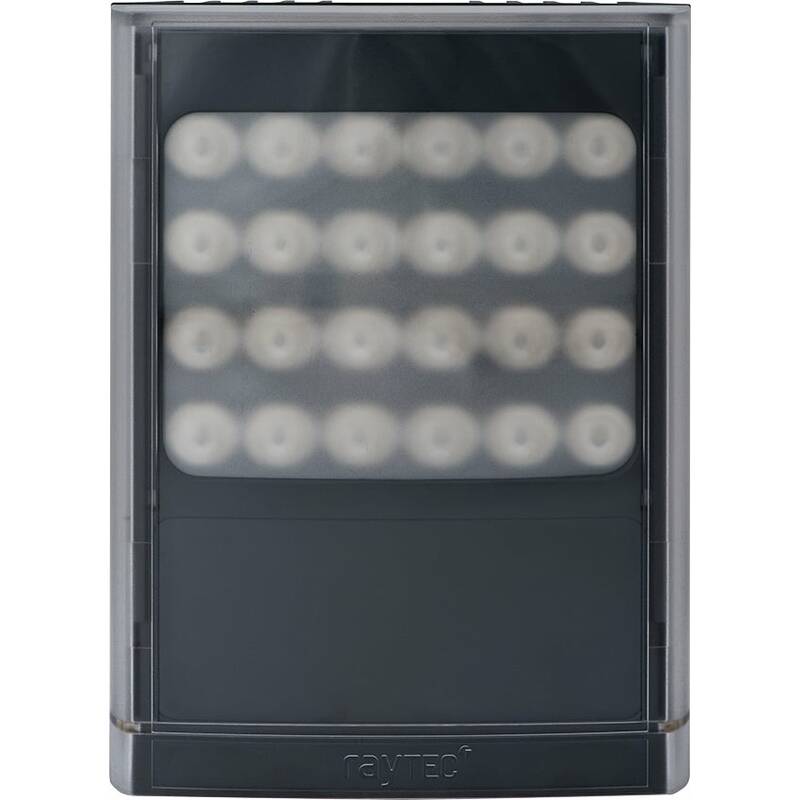

VARIO2 hy8-1 standard pack, 10°x10°, 35°x10° and 60°x25° angles included, 24V DC, black, 850nm & White-Light
Part Code: VAR2-HY8-1
VARIO2 Hybrid illuminators use PLATINUM Elite twin-core SMT LED technology to deliver all the performance of a stand-alone Infra-Red and a stand-alone White-Light illuminator in a single, fully integrated two-in-one solution. The Infra-Red illumination can be used for general surveillance whilst the White-light can be used as a deterrent, or to deliver additional scene information upon activation. Switching from Infra-Red to White- Light illumination on-demand is easy, via a volt free switch for external devices or alarm inputs. VARIO2 Hybrid features an interchangeable lens system with Hot-spot Reduction Technology to deliver highly even illumination, where it is most needed. With the optional hand-held remote control, VARIO2 Hybrid also makes installation and commissioning quicker, easier and safer.
- Combined Infra-Red & White-Light Illumination
- Switch easily and automatically between IR & WL
- PLATINUM Elite twin-core SMT LED Technology
- Hot-spot Reduction Technology (HRT)
- VARIO Interchangeable Lens System
- VARIO Remote Control (optional)
- Angles from 10-120 degrees – from 1 product
With infrared | yes |
With white light | yes |
Wavelength | 850 nm |
Range | 86 to 290 m (IR) / 40 to 144 m (WL) |
Beam angle | 10...60 ° |
Maximum system power | 40 W |
With remote control | yes |
IP-rating | IP66 |
Suitable for wall mounting | yes |
Cable length | 2.5 m |
Ambient temperature | -50...50 °C |
Height | 180 mm |
Width | 135 mm |
Depth | 68.2 mm |
Colour | Black |
Key Features
- With infrared: yes
- With white light: yes
- Wavelength: 850 nm
- Range: 86 to 290 m (IR) / 40 to 144 m (WL)
- Beam angle: 10...60 °
- Maximum system power: 40 W
