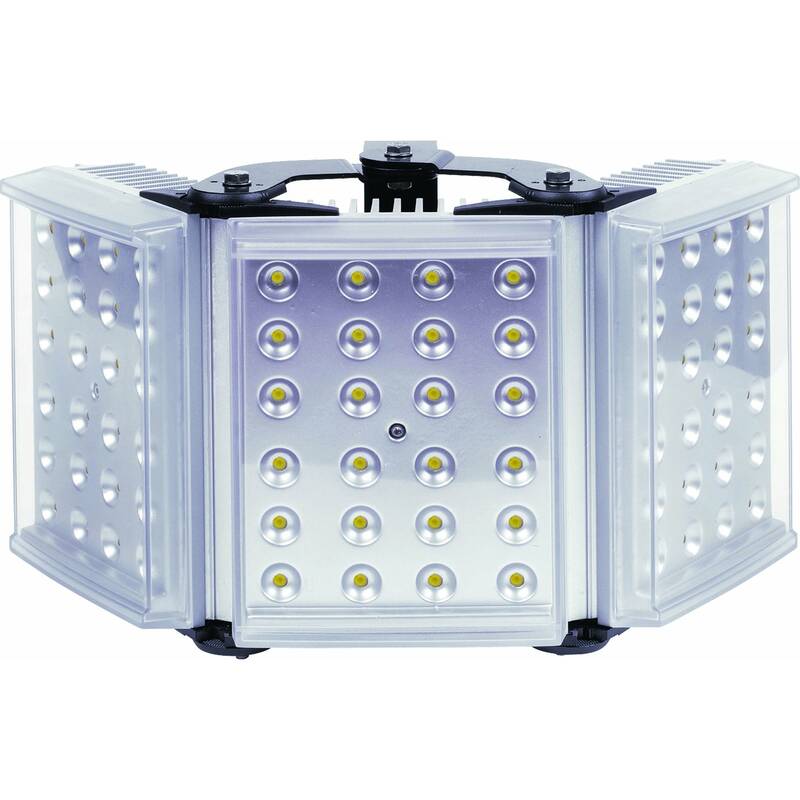

RAYLUX 300 5-15°Adaptive Illumin,Wt-Lt Inc PSU
Part Code: RL300-AI-05
The RAYLUX series of mains powered White-Light illuminators provides class leading night-time performance, long life and requires zero maintenance. They incorporate the very latest surface mount LEDs to deliver even illumination and true colour images for both surveillance cameras and general area lighting. RAYLUX is a quick start lighting solution, making it perfect for deterring crime on alarm; unlike other traditional technologies which are slow to start. The unique Adaptive Illumination concept provides the flexibility to alter the angle of illumination on site to match the exact camera field of view. Each unit is also fitted with Active LED Life Control to deliver a consistent working life of 10 years. RAYLUX illuminators are supplied with a dedicated power supply as standard. The RAYLUX 300 delivers maximum distances up to 320m (1,049ft).
- Mains Powered White-Light LED Illuminators
- Surface Mount LED Technology
- Long 10 Year Life - Zero Maintenance
- Adaptive Illumination
- Various Angles (10-120°)
- Accurate Colour Rendition
- Quick Start
- Even Output Illumination
- Active LED Life Control
- Supplied with Dedicated Power Supply Unit
With white light | yes |
Range | 190...320 m |
Beam angle | 5...15 ° |
Maximum system power | 120 W |
IP-rating | IP66 |
Suitable for wall mounting | yes |
Suitable for corner mounting | yes |
Cable length | 2.5 m |
Ambient temperature | -50...50 °C |
Height | 196 mm |
Width | 420 mm |
Depth | 66 mm |
Colour | Other |
Key Features
- With white light: yes
- Range: 190...320 m
- Beam angle: 5...15 °
- Maximum system power: 120 W
- IP-rating: IP66
- Suitable for wall mounting: yes
