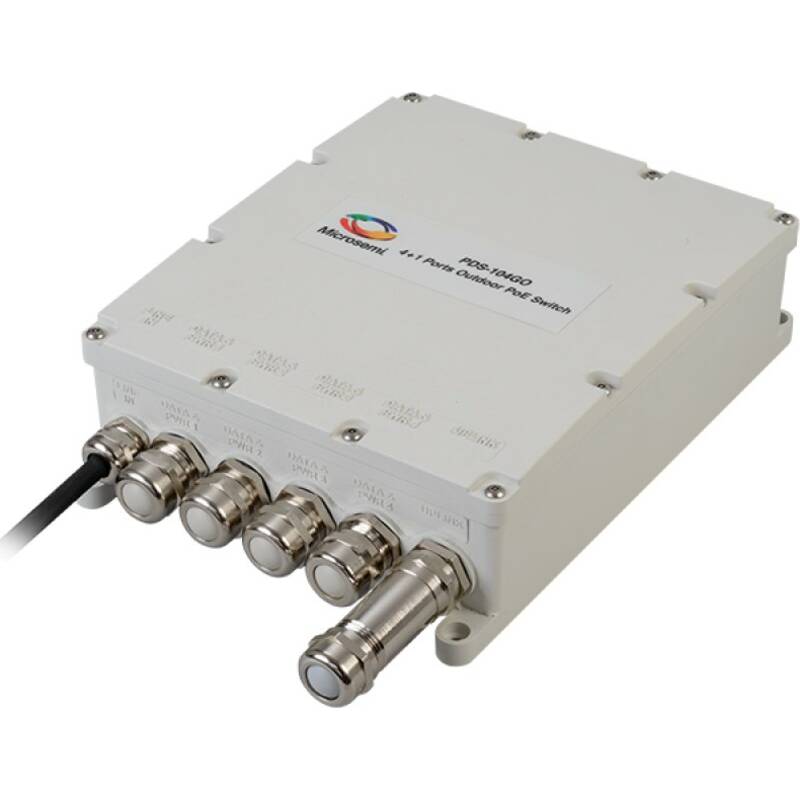

Pelco Managed Switch Outdoor Rated 4 Port PoE+ 30W Per Port or 60W 2 Ports + 1 SFP

Part Code: PDS-104GO/AC/M-CC-MSI

This product is no longer available. Please browse the website for alternatives or contact our Sales Team for assistance.

The PDS-104GO is an outdoor PoE switch that enables the connection of four powered devices to a network such as an outdoor WLAN, outdoor IP camera, or outdoor P2P radio. With VLAN and RADIUS support, the PDS-104GO brings improved security and performance. It provides better safety through centralized management of user profiles and authorized system access.

By regulating network traffic in each VLAN, the switch offers increased network performance. The switch offers an SFP port for uplink in order to support optical interfaces or electrical interfaces. It is IP66-rated and can be installed in outdoor environments. There is no need to open the unit during installation. Deployment is simple and straightforward.

The PDS-104GO delivers PoE power of up to 60W per device. In addition, it enables remote monitoring and control of the devices’ status, including remote reset. The switch extends the reach between the switch and powered devices by an additional 100 meters, to a maximum of 200 meters—a major benefit in many applications. It offers lightning protection to the switch itself and to the indoor network.

  • Five ports: one SFP data input, four PoE outputs
  • VLAN tagging: access/trunk
  • Authentication, authorization and accounting: RADIUS and TACACS
  • Remotely managed: SNMP and web
  • Extends network reach by additional 100m
  • Outdoor rated: IP66
  • Extended temperature range: –40ºC to 50ºC
  • IEEE 802.3at-compliant, 60W per port
  • Supports 10/100/1000 Mbps data rates
  • Integral surge protection
  • Plug-and-play installation (installer does not have to open unit)
Ethernet yes
Number of ports 10/100/1000 Mbps RJ45 5
Number of other ports 1
Number of ports PoE 4
Max. PoE power 150 W
Mounting method Surface mounted
Number of module slots 1
Manageable yes
IP-rating IP66

Key Features

  • Ethernet: yes
  • Number of ports 10/100/1000 Mbps RJ45: 5
  • Number of other ports: 1
  • Number of ports PoE: 4
  • Max. PoE power: 150 W
  • Mounting method: Surface mounted
