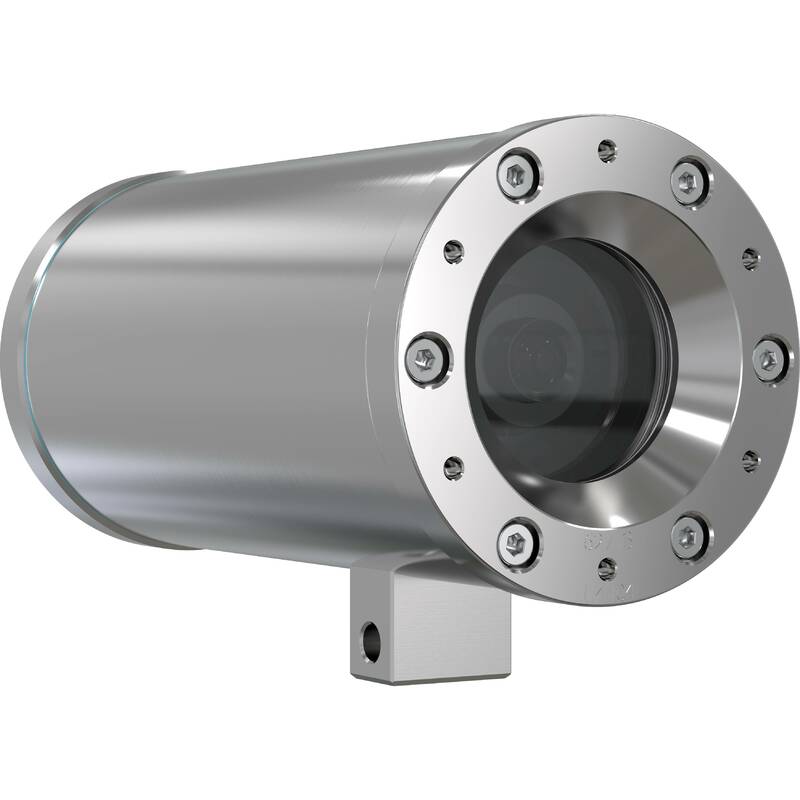

AXIS Explosion-protected, PoE powered, 3 MP fixed network camera

Part Code: EXCAM XF M3016

ExCam XF M3016 comes enclosed in a stainless steel explosion-protected housing and is certified (ATEX/IECEx/EAC Ex/IA/PESO) for use in potentially combustible zones. This lightweight and robust fixed box camera features Wide Dynamic Range (WDR), a wide field-of-view and great 3 MP image quality at up to 30 fps. It offers easy one-person installation and thanks to its compact design, it easily fits wherever you need it. It’s powered by Power over Ethernet (PoE) and includes a pre-connected 5 m (16 ft) non-armored cable. Furthermore, Axis Zipstream with support for H.264 and H.265 significantly lowers bandwidth and storage requirements.

  • 3 MP at 30 fps, wide field-of-view, and WDR
  • Lightweight and compact
  • Powered by PoE with non-armored cable
  • ATEX, IECEx, EAC Ex, IA, and PESO
  • Zones 1, 2, 21, 22; Groups IIC, IIIC
Construction Box
Area of application Outdoor
Transmission TCP/IP
Power over Ethernet 802.3 af (PoE)
Mounting method Other
Focal range 2.8...2.8 mm
Colour Stainless Steel
Wireless no
Number of pixels (Megapixel) 3
With lens yes
With IR lamp no
Vandal-resistant no
IK Rating None
Built-in Analytics yes
IP-rating IP68
Power consumption 3.8 W
Depth 179 mm
ONVIF-compliant yes
Property picture system Colour

Key Features

  • Construction: Box
  • Area of application: Outdoor
  • Transmission: TCP/IP
  • Power over Ethernet: 802.3 af (PoE)
  • Mounting method: Other
  • Focal range: 2.8...2.8 mm
