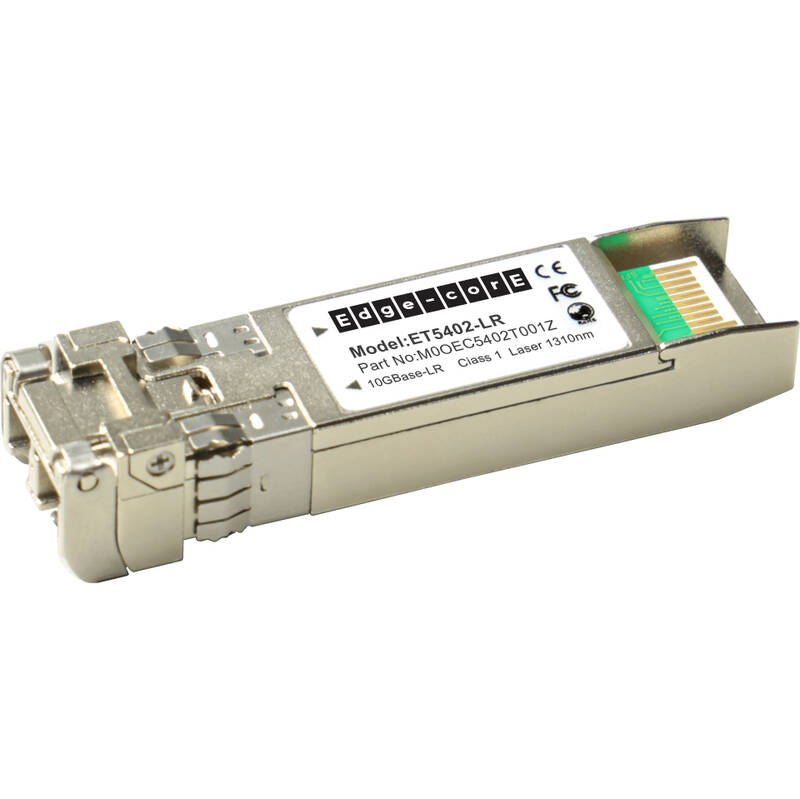

10GE SFP+ LR SM 1310nm 10km LC Duplex DDM
Part Code: ET5402-LR
ET5402-LR transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 10km. The ET5402-LR is compliant to SFI electrical specifications. The transmitter input and receiver output impedance is 100 Ohms differential. Data lines are internally AC coupled. The module provides differential termination and reduce differential to common mode conversion for quality signal termination and low EMI.
- Varied Distance and Speed - ET5402-LR provides the distance up to 10km with 10Gbps
- Compacted Size Designed - Edgecore's SFP transceiver compacted size also designed for the high port density fiber switch.
- Standard Compliance - Optical interface compliant to 802.3ae, Class 1 laser safety standard IEC 825 compliant, RoHS compliant
- Hot Swappable
- Low Power Consumption
- Bi-Direction SFP to Double Usage Bandwidth - Bi-direction SFP transceivers can support transmission and received data in single fiber. It can easy to double the bandwidth from dual fiber to single without any reconstruction.
- Digital Diagnostics Monitoring Interface (DDMI) - This feature gives the end use the ability to monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.
| 10 Gigabit Ethernet | yes |
| Wavelength | 1310000000 nm |
| Construction type | SFP |
Key Features
- 10 Gigabit Ethernet: yes
- Wavelength: 1310000000 nm
- Construction type: SFP
