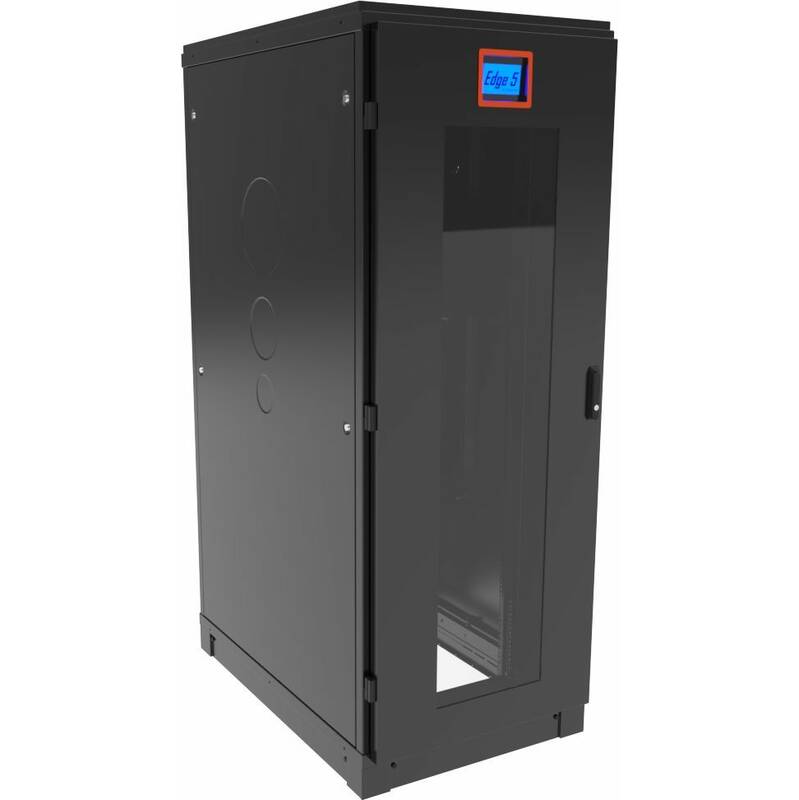

EDGE-5 36U 800W x 1200D Air-conditioned RH Micro Data Center Server Rack Black

Part Code: E5B-3612-24AR

The EDGE-5 from USystems is specifically designed for housing localised computing and network equipment in a standalone cabinet in a dedicated room. It is a self-contained air-conditioned MDC which is therefore an ideal solution for projects requiring active cooling without the use of external plant.

The EDGE-5 provides a safe constant working temperature and will deal with a working load of between 500w to 2.5kW to protect and prolong the life of your IT equipment. The EDGE-5 is an ideal solution for reducing energy costs and keeping temperatures controlled inside the cabinet.

The slimline air-conditioning unit will speed up and slow down as and when the heat load dictates, removing the need for unnecessary over use of the equipment. The AC unit delivers a constant stream of cold air to the front of the cabinet. The returning hot exhaust air is then pulled over a heat exchanger before continuing through a dedicated channel back to the front of the cabinet.

  • EDGE Management System EMS providing real time environmental monitoring
  • Cable tray on both sides to ensure best cabling practice
  • Cable management fingers with hinged cable tidy cover which are ideal for tidy cabling, with hinged tidy for tidiness and protection
  • The anti-air recirculation foam sealing kit seals gaps in the cabinet to stop recirculation of airflow.
  • Cable entry glands allowing for easy and flexible cable egress through the rack top
  • LCD display displaying alarm state and major monitoring points
  • Clear glass door, so you keep an eye on equipment without the need to open the door
  • Air conditioning unit
Mounting Profile Front and rear
Type of ventilation Active
Width 800 mm
Height 1989 mm
Depth 1200 mm
Number of rack units (RU) 36
Max. load capacity 1500 kg
With roof plate yes
With front door yes
Front door locking system Four-point
With glazed door yes
Side panels included yes
With vertical cable management yes
Material Steel
Type of surface Powder coated
Colour Black
Application Server Rack

Key Features

  • Mounting Profile: Front and rear
  • Type of ventilation: Active
  • Width: 800 mm
  • Height: 1989 mm
  • Depth: 1200 mm
  • Number of rack units (RU): 36
