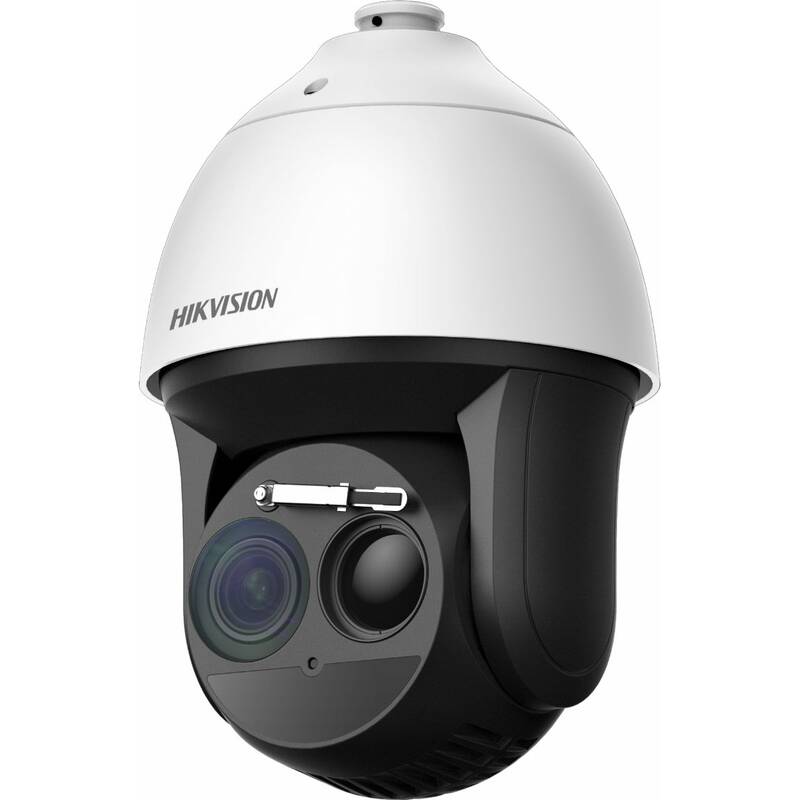

Hikvision 4 Megapixel 384x288 Thermographic Thermal & Optical Bi-spectrum Network Speed Dome 25 mm

Part Code: DS-2TD4137T-25/W(B)

This product is no longer available. Please browse the website for alternatives or contact our Sales Team for assistance.

Hikvision DS-2TD4137T-25/W Thermographic Thermal & Optical Bi-spectrum Network Speed Dome is applied to manufacture process supervision of pyrophoric materials in factories, electric substation, and hydropower station. The accurate temperature measurement system sends you alarms to protect you from property loss.

  • Behavior analysis function, based on deep learning algorithm: line crossing, intrusion, region entrance, and exit
  • Temperature exception alarm for fire prevention
  • Fire detection algorithm
  • 384 × 288 (the resolution of output image is 1920 × 1080) resolution 17 μm, VOx UFPA, NETD ≤ 35 mK (25°C, F# = 1.1)
  • High quality detector with 10 years guarantee
  • Smart tracking: Panorama tracking, Event tracking, and Multi-scene patrol tracking
  • Smart tracking linkage: Thermal view and optical view
  • Thermal channel supports EIS, conflicted with intelligent function
Model Pan-Tilt-Zoom
Mounting method Ceiling
Area of application Outdoor
Protocol TCP/IP
Power over Ethernet 802.3bt (4PPoE)
Property picture system Colour
Focal range 25...25 mm
Colour White
Wireless no
Number of pixels (Megapixel) 4
With lens yes
With IR lamp yes
Max. infrared reach 200 m
Vandal-resistant no
IK Rating None
Built-in Analytics yes
IP-rating IP66
Power consumption 60 W
ONVIF compliant yes

Key Features

  • Model: Pan-Tilt-Zoom
  • Mounting method: Ceiling
  • Area of application: Outdoor
  • Protocol: TCP/IP
  • Power over Ethernet: 802.3bt (4PPoE)
  • Property picture system: Colour
