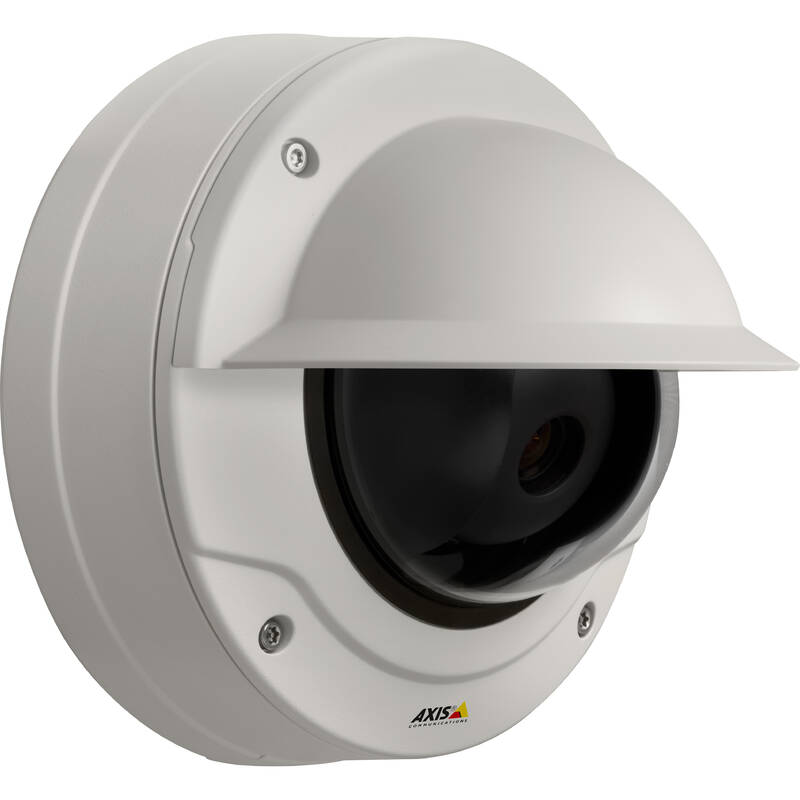

AXIS Q3504-VE
Image 1 of 1
D/N FIXED DOME OUTDOOR CASING-3-9MM P-IRIS LENS
Part Code: AXIS Q3504-VE
AXIS Q3504-VE is a robust, vandal-resistant fixed dome for demanding outdoor installations. Its top-quality image sensor and enhanced processing with Lightfinder technology provide exceptional light sensitivity and Wide Dynamic Range
- Forensic Capture. Electronic image stabilization is instrumental when the camera is subject to vibration, resulting in smoother and steadier video. The camera is easy to install with smart conduit connection and cable management, as well as remote zoom and focus that eliminates the need for hands-on fine tuning. It is ideal for identification of people, objects and vehicles in harsh environments and difficult light conditions.
- Lightfinder and WDR – Forensic Capture
- HDTV 720p at up to 120 fps
- Axis’ Zipstream technology
- Electronic Image Stabilization
- IK10+ (50 joules) impact resistance
Mounting method | Wall/ceiling |
Area of application | Outdoor |
Protocol | TCP/IP |
Power over Ethernet | 802.3 af (PoE) |
Property picture system | Colour |
Focal range | 3...9 mm |
Colour | White |
Wireless | no |
Number of pixels (Megapixel) | 1 |
With IR lamp | no |
Number of audio inputs | 1 |
Number of audio outputs | 1 |
Vandal-resistant | yes |
Built-in Analytics | yes |
IP-rating | IP67 |
Horizontal field of view | 105...36 ° |
Vertical field of view | 57...21 ° |
Power consumption | 11.7 W |
ONVIF compliant | yes |
Construction | Dome |
Key Features
- Mounting method: Wall/ceiling
- Area of application: Outdoor
- Protocol: TCP/IP
- Power over Ethernet: 802.3 af (PoE)
- Property picture system: Colour
- Focal range: 3...9 mm
