CPI Rack Bonding Jumper Kit 2.7 m
Part Code: 40159-008
This product is no longer available. Please browse the website for alternatives or contact our Sales Team for assistance.
Rack Bonding Jumper Kits serve as a rack bonding conductor for CPI’s Universal and Standard Racks. CPI’s Universal Racks include a location for attaching the Rack Bonding Jumper Kit inside the rack’s vertical equipment mounting channel. Order additional hardware as required to secure the other end of the jumper to the telecommunications equipment bonding conductor or directly to a telecommunications bonding busbar.

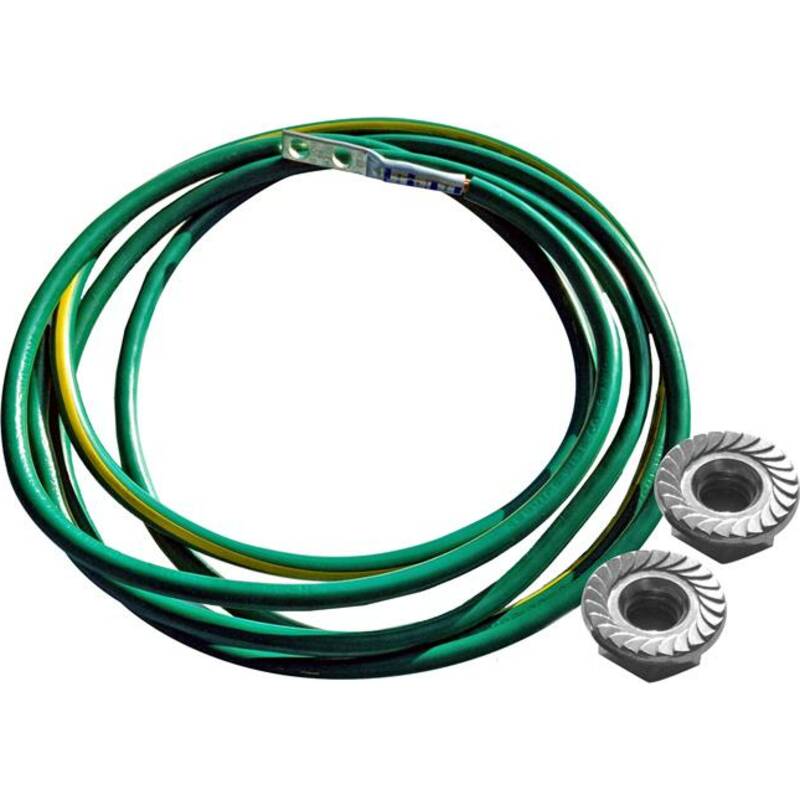

- 9' L (2.7 m) #6 AWG stranded copper conductor insulated green with a horizontal yellow stripe attached to a two-hole compression lug with 1/4 ” (6.35 mm) bolt holes spaced on 5/8 ” (15.88 mm) centers
- 1/4-20 zinc plated serrated flange hex nuts
- 0.5 oz (14 g) packet of aluminum antioxidant joint compound
- Constructed of UL Listed components, File E236184, Category KDER (US), KDER7 (Canada) - Bonding and Grounding Equipment
- Available individually or in packages of 10
| Application | Jumper kit |
| Mounting method | Screwing |
Key Features
- Application: Jumper kit
- Mounting method: Screwing
