TestPro Multifunction Cable Certifier
TRY IT, TEST IT, TRUST IT

TestPro CV100 Platform Specifications

Specification
Battery
  • Lithium Ion
  • 3.7v
  • 13,200 mah
  • Approximate Test time : 8hrs (based on 200 tests per day)
  • Charging time : 7hrs
Operating System
  • Linux
Test Data Management
  • TestDataPro PC Based Software
  • TestDataPro Cloud
Data Transference
  • USB flash type A
  • Micro USB
  • USB cable
Adapter Inerface
  • 60-pin high-frequency connector
  • Rated for 5000 insertion cycles
  • Hot swappable
Power Adapter
  • 5V, 3A (supplied)
  • 5-12V (supported)
  • 2.1mm DC Jack
RJ45 Test Ports
  • AD-NETCABLE Test Adapter
  • Network Connectivity Testing
  • PoE load testing
  • 2.5G / 5G / 10G Multi-Gig Link speed testing
  • CAT3 – CAT6A Channel
  • Integrated RJ-45 side port
  • 10 / 100 / 1G BASE-T testing
TestPro CV100 K61

The K61 combines both cable certification and network connectivity testing. It provides both Copper and Fibre Optic certification, PoE load testing and Multi-gigabit link speed testing. Wired and Wireless network testing is supported with included AD-NET-CABLE Adapter. Wireless testing requires an optional Edimax EW-7822ULC Wi-Fi USB Adapter.

TestPro CV100 K60

The K60 combines both cable certification and network connectivity testing. This kit provides Copper certification, PoE load testing and Multi-gigabit link speed testing. Wired and Wireless network testing is supported with included AD-NET-CABLE Adapter. Wireless testing requires an optional Edimax EW-7822ULC Wi-Fi USB Adapter.

TestPro CV100 K51

The K51 kit provides both copper and fibre Optic certification. Wireless testing is supported and requires an additional Edimax EW-7822ULC Wi-Fi USB Adapter.

TestPro CV100 K50

The K50 kit provides certification. Wireless testing is supported and requires an optional Edimax EW-7822ULC Wi-Fi USB Adapter.

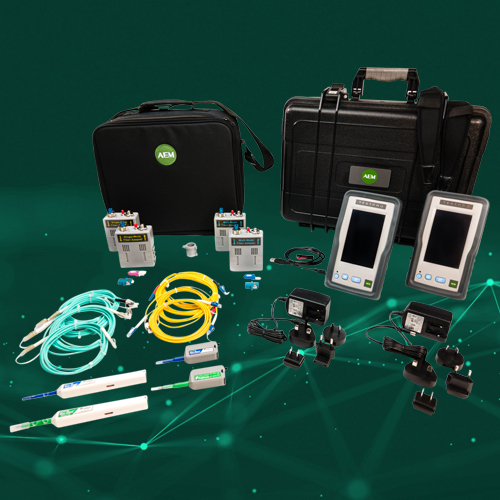

TestPro CV100 K11

The K11 kit provides Fibre Optic certification. Wireless testing is supported and requires an optional Edimax EW-7822ULC Wi-Fi USB Adapter.
