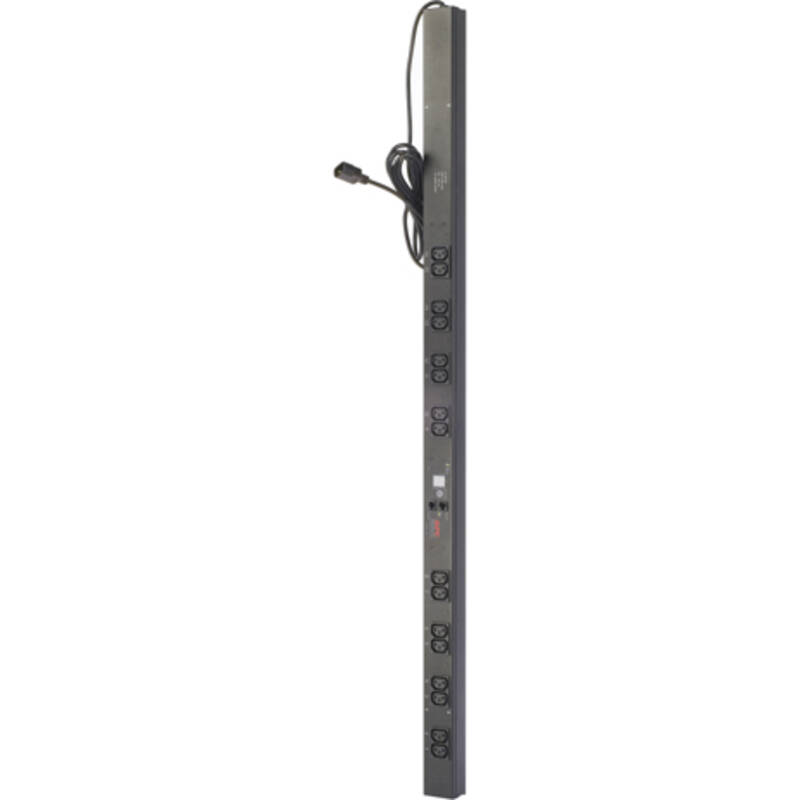

The American Power Conversion (APC®) Metered Rack Power Distribution Unit (PDU) AP7850 distributes power to devices in the rack. It has a sensor that measures the current used by the PDU and its attached devices. It can be monitored through Web, Telnet, SNMP, SSH, or InfraStruXure® Manager interfaces. The AP7850 has sixteen (16) IEC-C13 outlets, one (1) IEC-C14 input and the digital display shows aggregate current being used per phase by the PDU.
Features:
| Mounting direction | Vertical |
| Type of electric plug connection | C14 |
| Cable length | 3.05 m |
| Number of C13 socket outlets | 16 |
| Number of rack units (RU) | 0 |
| Width | 56 mm |
| Height | 1245 mm |
| Depth | 44 mm |
| Supply voltage | 230 V |
| SNMP | yes |
| Display | yes |
| With LED indication | yes |
| With mounting bracket | yes |
