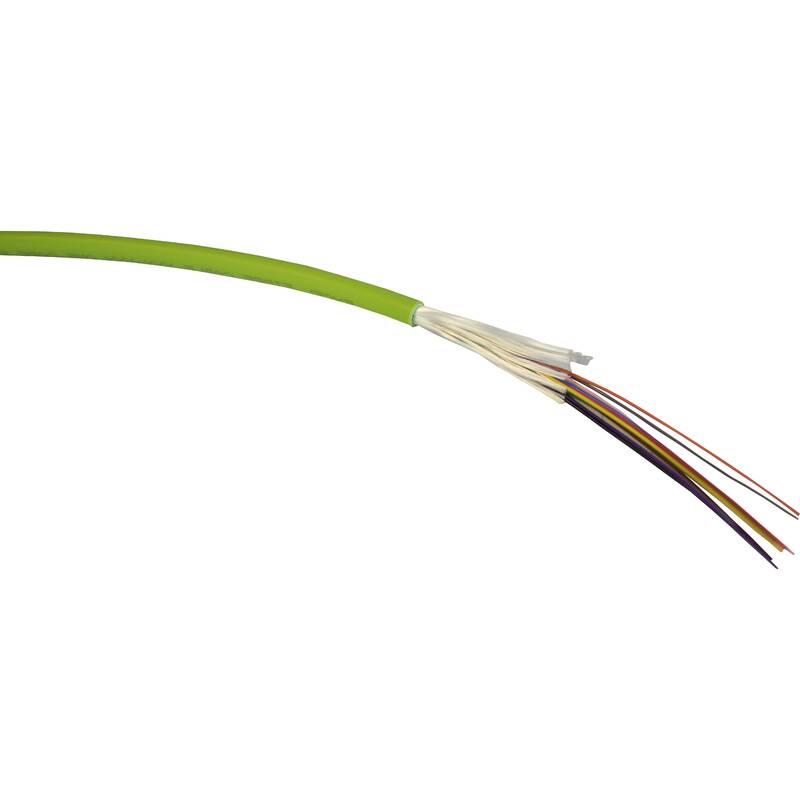

Excel Enbeam OM5 Tight Buffered 4 Core Internal Cable LSOH B2ca Lime Green
Part Code: 299-104
Excel Enbeam OM5 distribution cables have been designed specifically for internal applications. The multi mode fibre offers OM5 performance and backwards compatibility.
The cables are constructed using multiple buffered fibres from 4 to 24 coloured 900 µm fibres surrounded by aramid yarn around a central FRP strength member.
This allows the cable to be used in internal applications with a Euroclass rating of B2ca.
| Number of Cores | 4 |
| Type of tube | Tight |
| Number of fibres per tube | 4 |
| Fibre type | Multi mode 50/125 |
| Category | OM5 |
| Outer sheath material | LSZH |
| Outer sheath colour | Lime green |
| Reaction-to-fire class according to EN 13501-6 | B2ca |
| Smoke development class according to EN 13501-6 | s1a |
| Euro class flaming droplets/particles according to EN 13501-6 | d1 |
| Euro class acidity according to EN 13501-6 | a1 |
| Outer diameter approx. | 6.5 mm |
Key Features
- Suitable for internal use only
- Sequential meter mark
- Cut to length service
- 25 year warranty
- Euroclass: B2ca-s1,d1,a1
