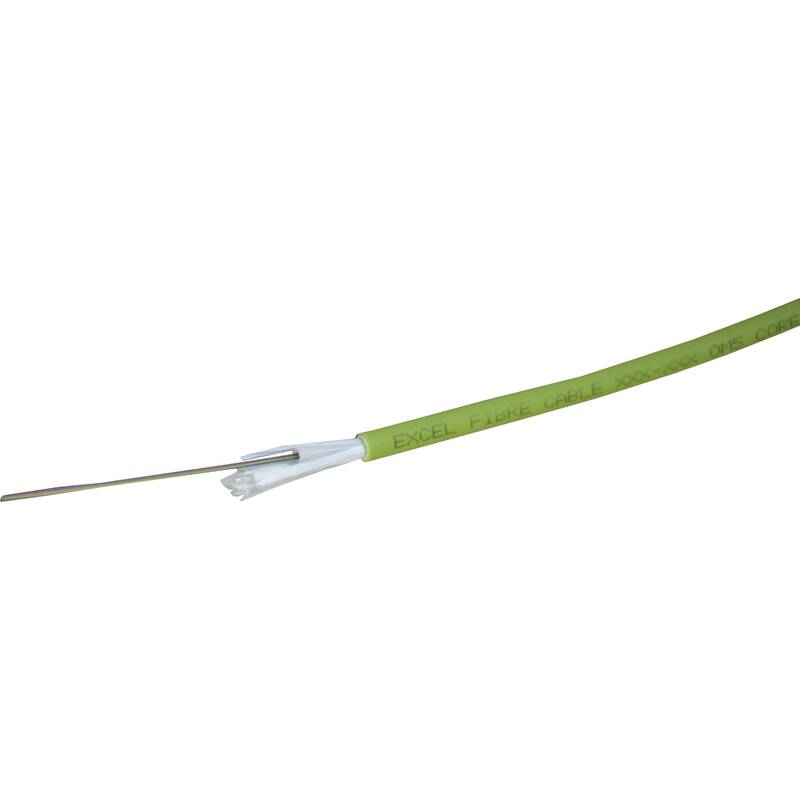

Excel Enbeam OM5 Loose Tube 8 Core Internal Cable LSOH B2ca Lime Green
Part Code: 298-008
Excel OM5 50/125 µm loose tube optical fibre cables have been designed specifically for internal and external applications. These compact, lightweight cables are extremely flexible and are quick and easy to install. The cables are constructed around a gel free tube containing up to 24 colour coded 250 µm primary coated fibres. This tube is covered with an E-glass strength member. The print legend on the cable now includes information regarding the DOP number, test and classification of the cable for traceability.
| Number of Cores | 8 |
| Type of tube | Loose tube |
| Number of fibres per tube | 8 |
| Fibre type | Multi mode 50/125 |
| Category | OM5 |
| Outer sheath material | LSZH |
| Outer sheath colour | Lime green |
| Reaction-to-fire class according to EN 13501-6 | B2ca |
| Smoke development class according to EN 13501-6 | s1a |
| Euro class flaming droplets/particles according to EN 13501-6 | d0 |
| Euro class acidity according to EN 13501-6 | a1 |
| Outer diameter approx. | 6 mm |
Key Features
- Suitable for internal use only
- Sequential meter mark
- Cut to length service
- 25 year warranty
- Euroclass: B2ca-s1,d0,a1
