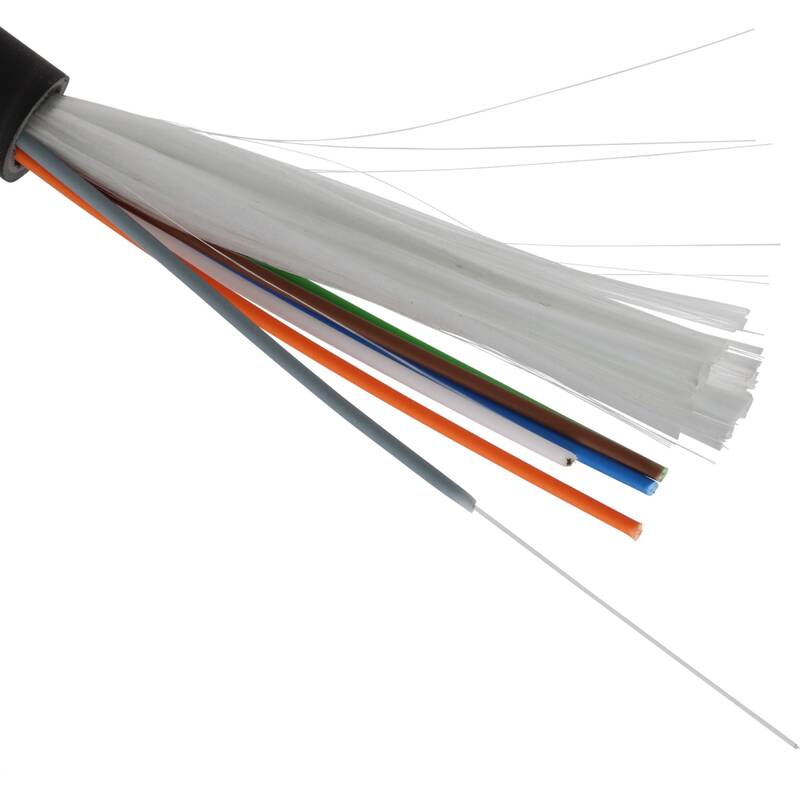

Excel Enbeam OM3 Multimode Fibre Optic Cable Tight Buffered 6 Core 50/125 Cca Black
Part Code: 200-118
Excel OM3 50/125 μm tight buffered optical fibre cables have been designed specifically for internal and external applications. These compact, lightweight cables are extremely flexible and are quick and easy to install.
The cables are constructed around an E-Glass strength member containing up to 24 colour coded 900 μm tight buffered fibres, covered with a flame retardant, low smoke zero halogen, outer sheath.
| Number of Cores | 6 |
| Type of tube | Tight |
| Fibre type | Multi mode 50/125 |
| Category | OM3 |
| Rodent resistant | yes |
| Outer sheath material | Copolymer, thermoplastic (LS0H) |
| Outer sheath colour | Black |
| Flame retardant according to IEC 60332-1-2 | yes |
| Low smoke (acc. IEC 61034-2) | yes |
| Reaction-to-fire class according to EN 13501-6 | Cca |
| Smoke development class according to EN 13501-6 | s1a |
| Euro class flaming droplets/particles according to EN 13501-6 | d1 |
| Euro class acidity according to EN 13501-6 | a1 |
| Outer diameter approx. | 6.6 mm |
Key Features
- UV and water resistant construction
- Duct grade rodent resistant
- Cut to length service
- Sequentially metre marked
- 25 Year system warranty
- Euroclass Cca-s1a-d0-a1
- CIBSE TM65 Embodied Carbon: 0.181 kg CO2e
