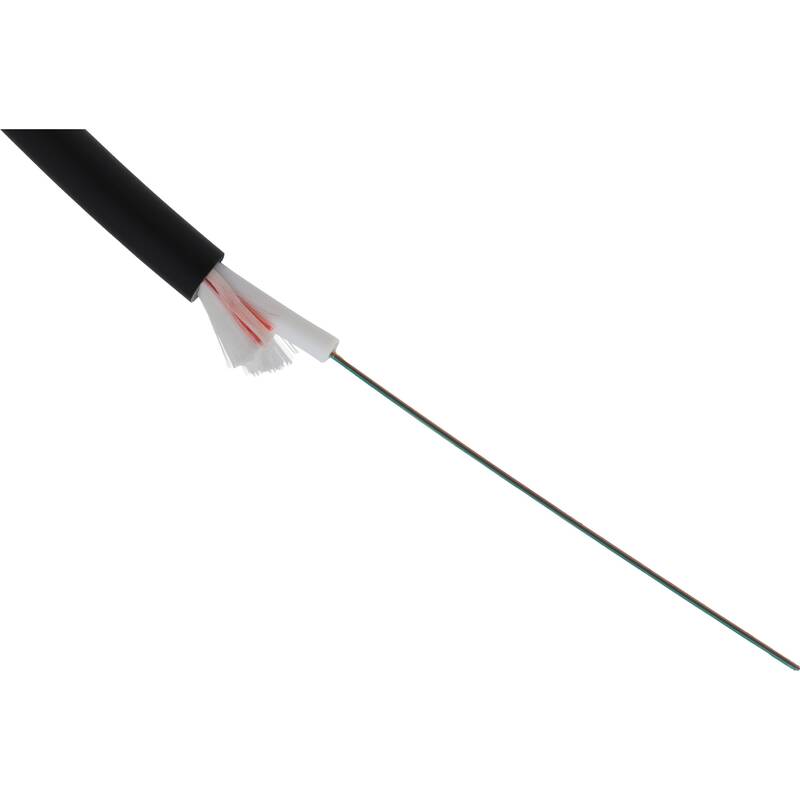

Excel Enbeam OM3 Multimode Fibre Optic Cable Loose Tube 4 Core 50/125 Dca Black
Part Code: 200-150
Excel OM3 50/125 μm loose tube optical fibre cables have been designed specifically for internal and external applications. These compact, lightweight cables are extremely flexible and are quick and easy to install.
The cables are constructed around a gel filled (non‐dripping and silicon free) tube containing up to 24 colour coded 250 μm primary coated fibres. This tube is covered with an E-Glass strength member.
| Number of Cores | 4 |
| Type of tube | Loose tube |
| Number of fibres per tube | 4 |
| Fibre type | Multi mode 50/125 |
| Category | OM3 |
| Rodent resistant | yes |
| Outer sheath material | Copolymer, thermoplastic (LS0H) |
| Outer sheath colour | Black |
| Flame retardant according to IEC 60332-1-2 | yes |
| Low smoke (acc. IEC 61034-2) | yes |
| Reaction-to-fire class according to EN 13501-6 | Dca |
| Smoke development class according to EN 13501-6 | s2 |
| Euro class flaming droplets/particles according to EN 13501-6 | d2 |
| Euro class acidity according to EN 13501-6 | a1 |
| Outer diameter approx. | 6 mm |
Key Features
- Duct grade rodent resistant
- Cut to length service
- Sequentially metre marked
- 25 Year system warranty
- Euroclass Dca-s2-d2-a1
- CIBSE TM65 Embodied Carbon: 0.190 kg CO2e
