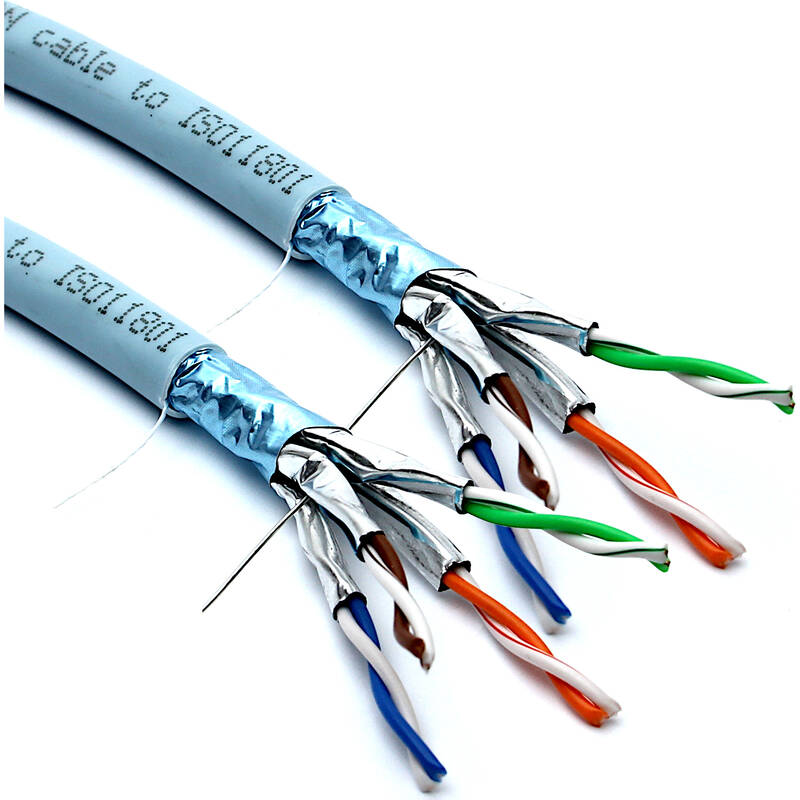

Excel Dual Cat6A cable individually screened full F/FTP LSOH CPR Euroclass B2ca designed and manufactured to meet and exceed the ISO, CENELEC and TIA standards and supplied on 500 m reels. Excel Cat6A fully screened (F/FTP) Cable takes the performance capabilities of copper infrastructure to new levels.
This delivers Class EA/Augmented Category 6 link performance over distances of up 90 m which supports the applications including 10GBASE-T, 10 Gigabit Ethernet.
Each cable consists of four pairs which are individually wrapped with a high quality, strong, aluminium/polyester foil tape providing screening for each pair.
This is a dual cable providing two sets of conductors.
The individual pairs are set to different lay lengths to ensure optimum performance. These are then wrapped in another overall foil.
| Cable type | F/FTP |
| Conductor surface | Bare |
| AWG size | 23 |
| Conductor category | Class 1 = solid |
| Total number of cores | 16 |
| Stranding element | Pairs |
| Specification core insulation | Polyethylene (PE) |
| Core identification | Colour |
| Overall screening | Braiding |
| Conductor screening | Foil |
| Outer sheath material | Copolymer, thermoplastic (LS0H) |
| Outer sheath colour | Aqua |
| Flame retardant according to IEC 60332-1-2 | yes |
| Low smoke (acc. IEC 61034-2) | yes |
| Halogen free (acc. IEC 60754-2) | yes |
| Reaction-to-fire class according to EN 13501-6 | B2ca |
| Smoke development class according to EN 13501-6 | s1a |
| Euro class flaming droplets/particles according to EN 13501-6 | d1 |
| Euro class acidity according to EN 13501-6 | a1 |
| Outer diameter approx. | 7.5 mm |
| Operating Temperature Range | -20...75 °C |
| Category | 6A (IEC) |
| NVP value | 74 % |
