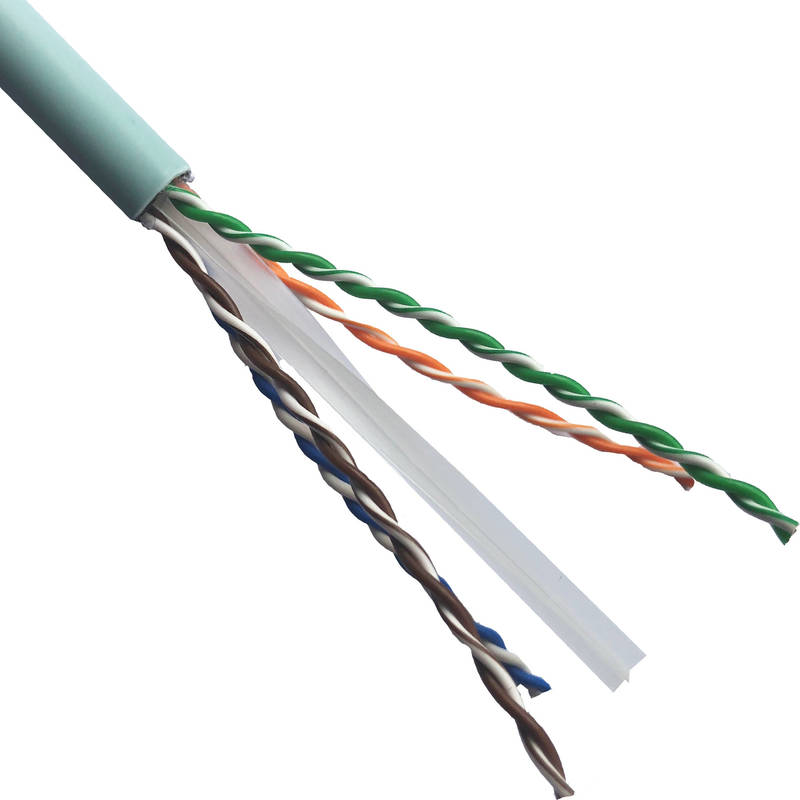

Excel solid Cat6A cable U/UTP 23AWG LSOH CPR Euroclass Dca designed and manufactured to meet and exceed the ISO, CENELEC and TIA standards and supplied on 500 m reels. Excel Cat 6A U/UTP Cable takes the performance capabilities of copper infrastructure to new levels. This delivers Class EA/ Augmented Category 6 link performance over distances of up 90 metres which supports the applications including 10GBASE‐T, 10 Gigabit Ethernet.
To keep ahead of the ever-increasing expansion of network infrastructure and the growing need to save space in existing containment, Excel Networking Solutions is pleased to introduce a new reduced-size Category 6A U/UTP cable, which features one of the smallest diameters available in the market today at 7 mm. A weight of 48 g per meter allows more cable to be placed in containment and reduces the overall floor weight of any installation.
Its unique design overcomes the barriers of U/UTP when it comes to the CPR fire rating and performance. In smaller diameter cables, the use of a non-metallic but reflective barrier tape increases the performance of the cable and acts as a heat barrier, which reduces the combustibility of the cable giving a higher resilience to fire and decreasing the burn rate.
Conductor surface | Bare |
AWG size | 23 |
Conductor category | Class 1 = solid |
Total number of cores | 8 |
Stranding element | Pairs |
Specification core insulation | Polyethylene (PE) |
Core identification | Colour |
Overall screening | None |
Conductor screening | None |
Outer sheath material | Copolymer, thermoplastic (LS0H) |
Outer sheath colour | Aqua |
Flame retardant according to IEC 60332-1-2 | yes |
Reaction-to-fire class according to EN 13501-6 | Dca |
Smoke development class according to EN 13501-6 | s2 |
Euro class flaming droplets/particles according to EN 13501-6 | d0 |
Euro class acidity according to EN 13501-6 | a1 |
Outer diameter approx. | 7 mm |
Installation Temperature Range | 0...50 °C |
Operating Temperature Range | -20...60 °C |
Category | 6A (IEC) |
NVP value | 65 % |
Segregation class according to EN 50174-2 | C |
