Excel Cat6A cable screened F/FTP PE external grade is manufactured to meet and exceed the ISO, CENELEC and TIA standards and supplied on 500 m reels. Excel Cat6A screened (F/FTP) cable takes the performance capabilities of copper infrastructure to new levels.
This delivers Class EA/Augmented Category 6 link performance over distances of up to 90 m, which supports applications including 10GBASE‐T, 10 Gigabit Ethernet.

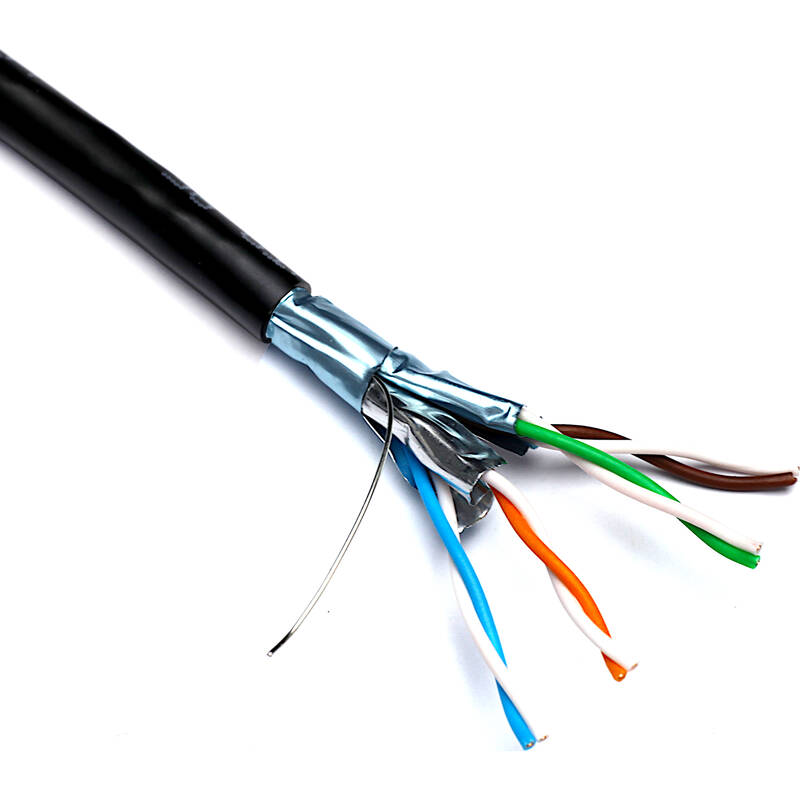

Each cable consists of 4 pairs individually wrapped with high quality, strong, aluminium / polyester foil tape providing screening for each pair. The foil configuration ensures separation of the pairs, maintaining the performance.
| Cable type | F/FTP |
| Conductor material | Copper |
| Conductor surface | Bare |
| AWG size | 23 |
| Conductor category | Class 1 = solid |
| Total number of cores | 8 |
| Stranding element | Pairs |
| Specification core insulation | Polyethylene (PE) |
| Core identification | Colour |
| Overall screening | Foil |
| Conductor screening | Foil |
| Outer sheath material | Polyethylene (PE) |
| Outer sheath colour | Black |
| Flame retardant according to IEC 60332-1-2 | yes |
| Reaction-to-fire class according to EN 13501-6 | Fca |
| Outer diameter approx. | 7.4 mm |
| Installation Temperature Range | 0...60 °C |
| Operating Temperature Range | -20...60 °C |
| Category | 6A (IEC) |
| NVP value | 75 % |
