WAP-6117

WAP-6117

Image 1 of 1

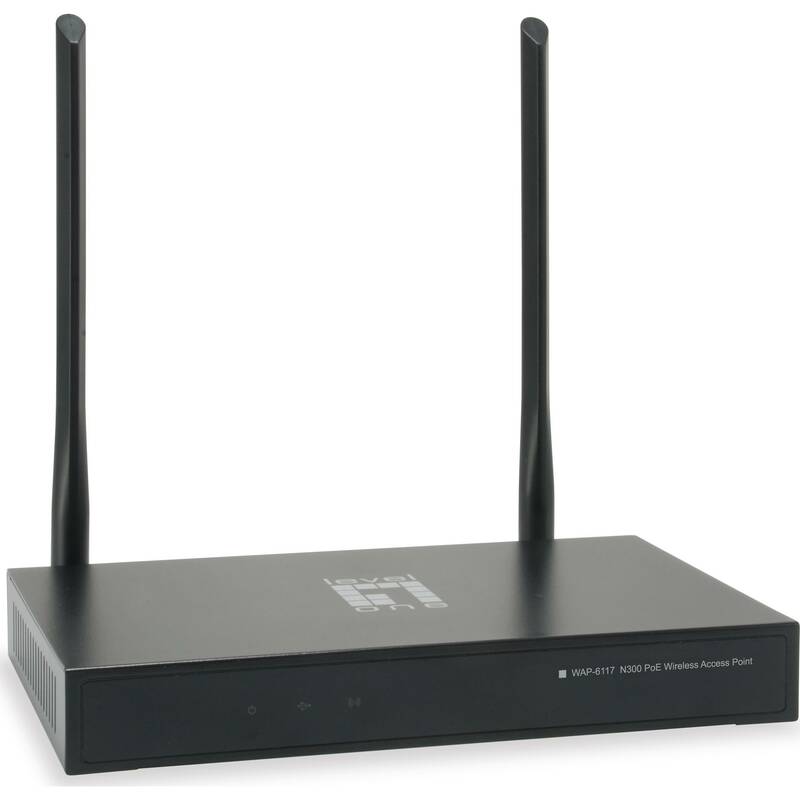

N300 PoE Wireless Access Point, Desktop, Controller Managed

Part Code: WAP-6117

This 802.11n single-band wireless access point can run on PoE, and is a fully managed device (when controlled by LevelOne WAC-2000, WAC-2003). The managed AP is capable of 300 Mbps throughput on the 2.4GHz frequency, and operates on its own or as part of a larger, managed network of access points. PoE means the device does not require an external power supply, making it a versatile and easily deployed option for all sizes of network.

  • Share your wireless network up to 300Mbps
  • Compatible with IEEE 802.11b/g/n wireless standards
  • Provides up to 4 SSIDs to separate network traffic and enhance security
  • Multi-operation modes to suit different wireless applications
  • Supports WEP, WPA and WPA2 encryption with IEEE 802.1x for high level security
  • IEEE 802.3af PoE compliant to simplify deployment and installation
Max. data transmission rate 300 Mbit/s
Frequency band 2.4 GHz
Managed yes
Radio protocol IEEE 802.11 b/g/n
Number of ports 10/100 Mbps LAN 4
Power over Ethernet yes
Width 220 mm
Height 30 mm
Depth 135 mm
Suitable for 19 inch mounting no

Key Features

  • Max. data transmission rate: 300 Mbit/s
  • Frequency band: 2.4 GHz
  • Managed: yes
  • Radio protocol: IEEE 802.11 b/g/n
  • Number of ports 10/100 Mbps LAN: 4
  • Power over Ethernet: yes
