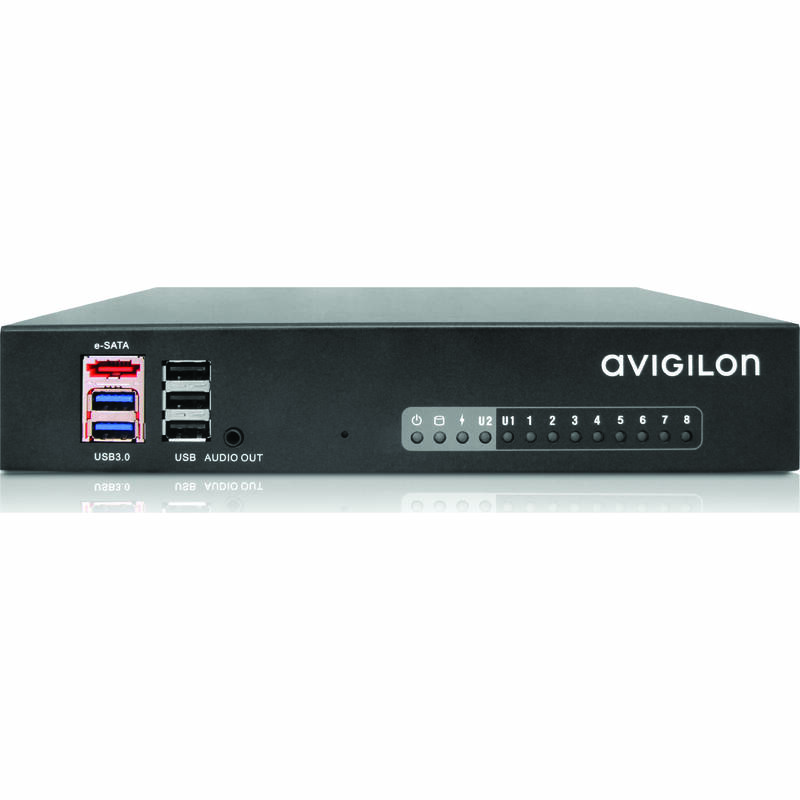

Avigilon HD VIDEO APPLIANCE 8PT 4TB 8CH CORE SWARE

Part Code: VMA-AS1-8P4-UK

This product is no longer available. Please browse the website for alternatives or contact our Sales Team for assistance.

Avigilon all-in-one appliances combine the functions of a network video recorder, high-powered Ethernet switch and the power of Avigilon Control Center (ACC) software into a single appliance.

The appliance can be easily added to an existing ACC system, or as a standalone system for small to midsized applications. The compact and powerful 8 port model is an ideal turnkey solution for small video surveillance deployments, while the 16 and 24 port Pro models are perfect for advanced installations requiring increased camera support, larger storage and superior overall performance.

  • Preloaded and configured with Avigilon Control Center High Definition
  • Network Video Management Software
  • Uses Avigilon’s industry leading High Definition Stream Management (HDSM) technology
  • Includes a camera channel licenses for each port
  • Embedded managed switch with high powered PoE output
  • Up to 30 images per second per camera channel
  • Supports up to 29MP camera resolution*
  • HDMI video out for HD video monitoring
  • Up to 12 TB effective recording capacity *Requires Enterprise license upgrade
Recording type Digital
Device construction Desktop
Power consumption 120 W
Max. data transmission rate 20 Mbit/s
Processor type Intel Core i3
Number of LAN-Ports 2
Number of combination-Ports RJ45/SFP 1
Number of ports PoE 8
Max. PoE power 120 W
Power over Ethernet 802.3 at (PoE+)
Operating systems Windows
Number of pre-licensed cameras 8
Number of hard disc bays 1
Hard Disk capacity 4 TB
RAID 0 capable no
RAID 1 capable no
RAID 5 capable no
RAID 6 capable no
Hot-swappable hard disk capability no
Width 232 mm
Height 44 mm
Depth 234.5 mm
Construction Server-Switch (Appliance)

Key Features

  • Recording type: Digital
  • Device construction: Desktop
  • Power consumption: 120 W
  • Max. data transmission rate: 20 Mbit/s
  • Processor type: Intel Core i3
  • Number of LAN-Ports: 2
