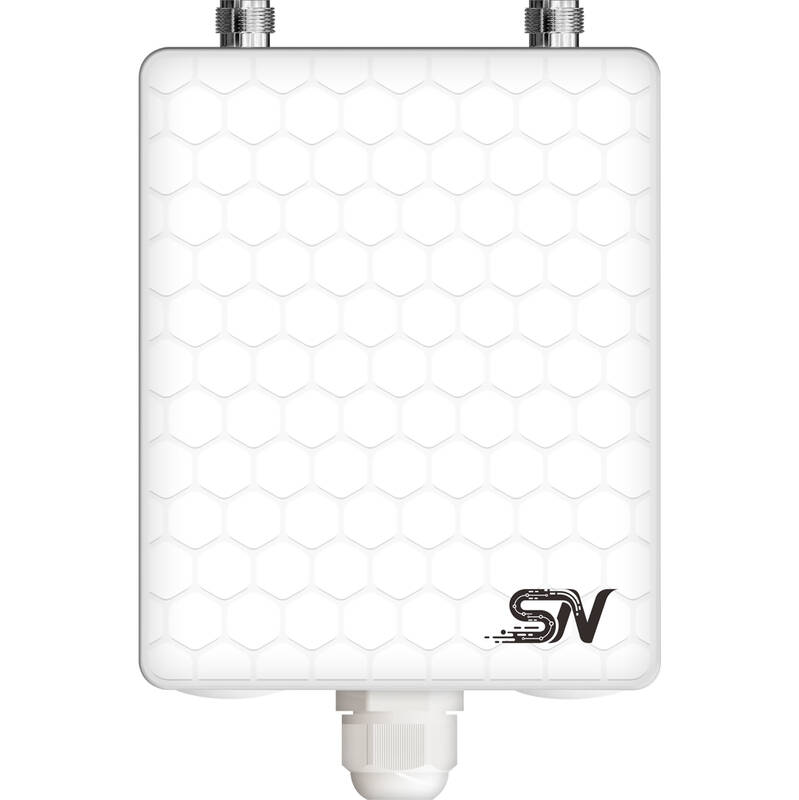

The SIL BASE 500 is a Multipoint receiver with 2 external antenna connectors. It can be used in a multipoint system or as a long range Point to Point link. The SIL BASE 500 is capable of up to 500 Mbps up to 5 km (depending on which external antenna is fitted).
When fitted with a Dual polarised Omni or Sector antenna the SIL BASE 500 can be used as a Multipoint receiver, receiving signals from multiple clients at the same time.
The SIL BASE 500 can also be used as a long range Backhaul link when fitted with Dish or Grid antennas.
| Max. data transmission rate | 2500 Mbit/s |
| Frequency band | 5,150...6,425 GHz |
| Managed | yes |
| Radio protocol | Wi-Fi 7 802.11 be |
| Ethernet | yes |
| Number of ports 10/100/1000 Mbps LAN | 1 |
| Number of ports 10 Gbps SFP | 1 |
| Firewall | no |
| VPN-security | no |
| Connection for external antenna | yes |
| Bridge function | yes |
| Repeater function | no |
| Power over Ethernet | yes |
| Colour | White |
| IP-rating | IP67 |
| Built-in Antenna | no |
| Pole fastening | yes |
| Suitable for wall mounting | yes |
