RG-EST330F-P
Image 1 of 6

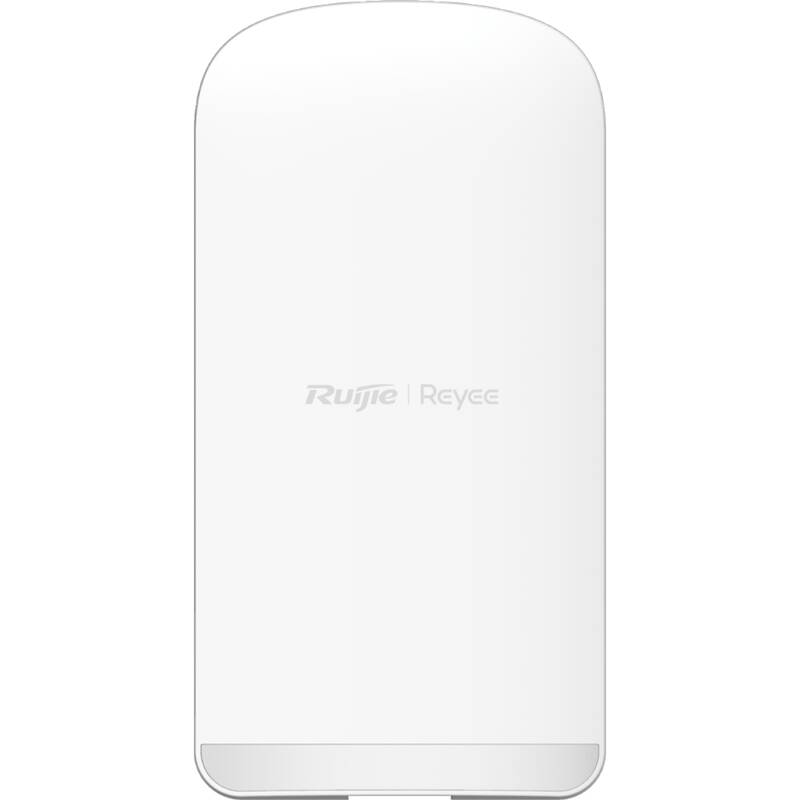

Reyee Wi-Fi 5 5 GHz Dual-stream 3x 100 Mbps Ports Wireless Bridge
Part Code: RG-EST330F-P
The RG-EST330F-P is an IEEE 802.11ac-compliant wireless bridge launched by Ruijie Reyee for applications such as video surveillance backhaul and remote data transmission in scenarios covering elevators, tower cranes, factories, campuses, and construction sites.
The RG-EST330F-P operates on the 5 GHz frequency band and supports 2x2 Multiple Input Multiple Output (MIMO) with two spatial streams, delivering a maximum wireless throughput of 867 Mbps for bridging applications. This meets users' bandwidth demands for data links. Additionally, the RG-EST330F-P supports the IEEE 802.11n standard, offering a maximum data rate of 150 Mbps on the 2.4 GHz band, which is ideal for remote device management. The RG-EST330F-P also supports IEEE 802.3af-compliant PoE and features two PoE-out ports, with a total output power of 15.4 W
- 3 x FE Ports, including 2 x PoE Out Ports
- Support 3 Power Supply Options: 12 V DC, Passive PoE, 802.3af/at
- Support TDMA
- Support SON
| Max. data transmission rate | 1017 Mbit/s |
| Frequency band | 2.4 GHz and 5 GHz |
| Managed | yes |
| Radio protocol | Wi-Fi 5 802.11 a/n/ac |
| Number of ports 10/100 Mbps LAN | 3 |
| Bridge function | yes |
| Power over Ethernet | yes |
| Built-in Antenna | yes |
| Pole fastening | yes |
| Suitable for wall mounting | yes |
Key Features
- Max. data transmission rate: 1017 Mbit/s
- Frequency band: 2.4 GHz and 5 GHz
- Managed: yes
- Radio protocol: Wi-Fi 5 802.11 a/n/ac
- Number of ports 10/100 Mbps LAN: 3
- Bridge function: yes
