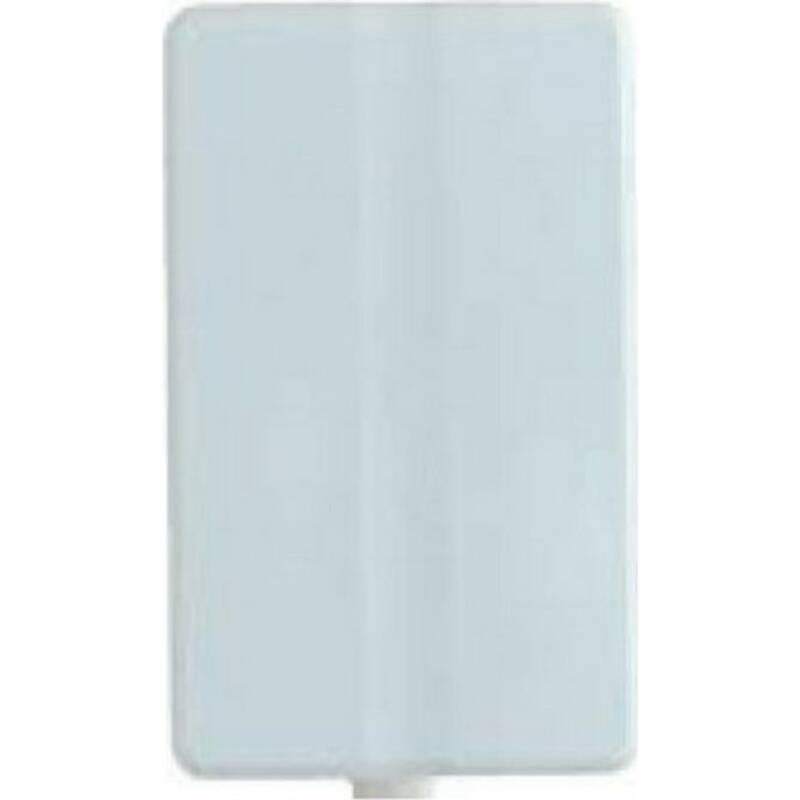

Ruijie 2.4 GHz MIMO Outdoor Directional Antenna Kit
Part Code: RG-ANTX3-2400D
The RG-ANTx3-2400D is an outdoor directional antenna that supports 3X3 MIMO and works with the RG-AP630 series products for coverage and bridge applications of the 2.4 GHz band.
- Pole mounting with a diameter of 30 mm to 50 mm
- Port resistance 50 Ω
- Antenna gain 3x 15 dBi
- Operating frequency 2.4 GHz-2.48 GHz
| Outdoor | yes |
| Aerial gain | 3x 15 |
| Omni directional | no |
| Polarization | Dual (+) |
| Connection | N |
| Connection type | Socket (Female) |
| Mounting method | Mast mounting |
| Height | 400 mm |
| Width | 240 mm |
| Depth | 35 mm |
| Ambient temperature during operating | -40...60 °C |
| MIMO (Multiple-Input Multiple-Output ) | yes |
| Frequency band 1 | 2.4...2.483 GHz |
Key Features
- Outdoor: yes
- Aerial gain: 3x 15
- Omni directional: no
- Polarization: Dual (+)
- Connection: N
- Connection type: Socket (Female)
