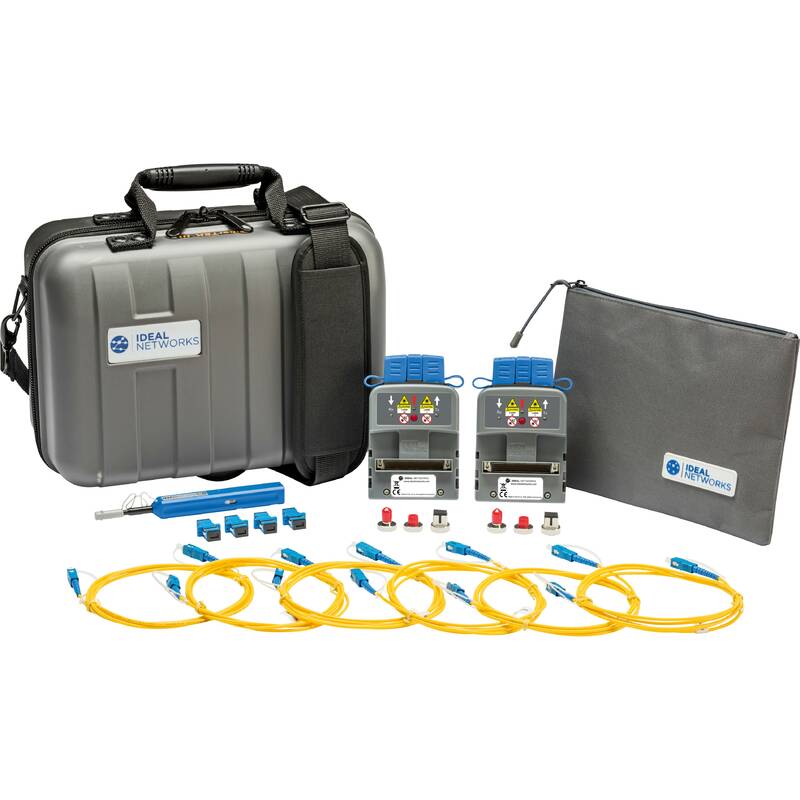

FIBERTEK-III - SM LASER KIT

Part Code: R164006

FiberTEK III adapters are used with LanTEK III for fast and simple certification of high bandwidth single-mode and multimode fibre optic cabling including support for encircled flux testing (optional).To pinpoint fibre cabling faults every FiberTEK III adapter includes a built-in visible light source to help you visually pinpoint faults and locate fibre ports.FiberTEK III provides optical loss (dB) measurements meeting Tier 1 certification requirements.

  • Setup WizardSelect field calibration (1-Jumper|3-Jumper) and measurement modes (Loopback|Normal), (Uni-Directional|Bi-Directional)
  • Auto-testPerform auto-tests using the intuitive graphical interface to reduce mistakes and ensure accurate certification results.
  • Review ResultsTier 1 certification results display: ISO/TIA/IEEE test standard Pass/Fail result dB loss of each fibre at each wavelength dB loss in each direction (when testing bi-directionally) Fibre link length dB margin / headroom
  • Attenuation/insertion loss (dB) measurement
  • Encircled Flux compliant (optional)
  • Built-in visible light source for troubleshooting
  • Full Tier 1 fibre certificationComplies with TIA/ISO/IEC
  • Supports all commonconnector types. SC, FC, ST adapters included. LC adapters optional
Suitable for type of fibre Single mode
Type of connector connection 1 SC
Type of connector connection 2 SC
Material housing Plastic
Material sleeve Plastic
Type of fastening Engage (snap)
Colour Blue
APC-type no
UPC-Version yes

Key Features

  • Suitable for type of fibre: Single mode
  • Type of connector connection 1: SC
  • Type of connector connection 2: SC
  • Material housing: Plastic
  • Material sleeve: Plastic
  • Type of fastening: Engage (snap)
