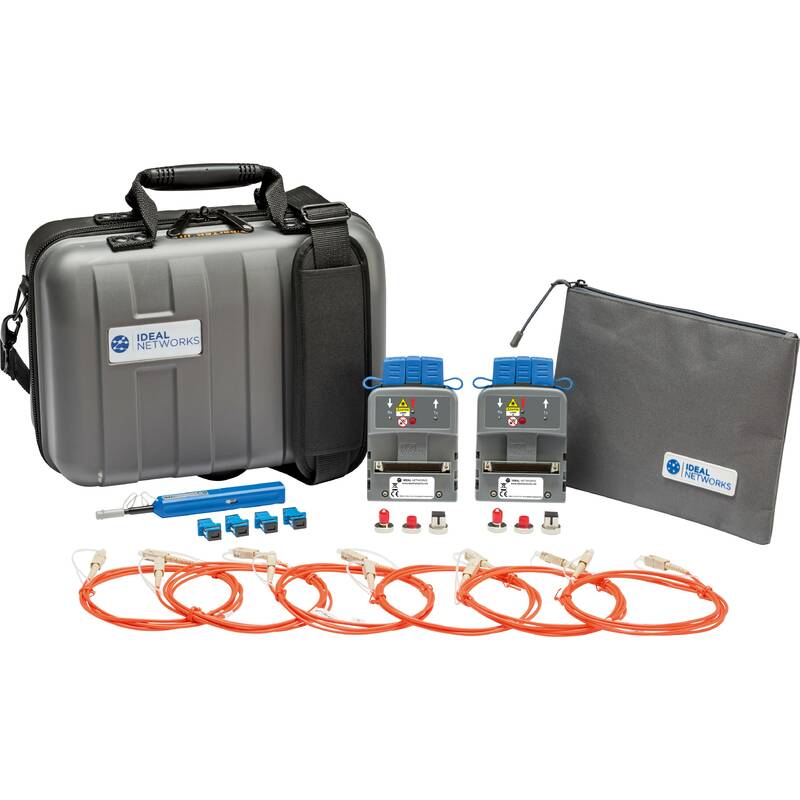

FiberTEK III multimode (850/1300nm) kit with LED light sources for standard multimode fibre
Part Code: R164005
FiberTEK III adapters are used with LanTEK III for fast and simple certification of high bandwidth single-mode and multimode fibre optic cabling including support for encircled flux testing (optional).To pinpoint fibre cabling faults every FiberTEK III adapter includes a built-in visible light source to help you visually pinpoint faults and locate fibre ports.FiberTEK III provides optical loss (dB) measurements meeting Tier 1 certification requirements.
- Setup WizardSelect field calibration (1-Jumper|3-Jumper) and measurement modes (Loopback|Normal), (Uni-Directional|Bi-Directional)
- Auto-testPerform auto-tests using the intuitive graphical interface to reduce mistakes and ensure accurate certification results.
- Review ResultsTier 1 certification results display: ISO/TIA/IEEE test standard Pass/Fail result dB loss of each fibre at each wavelength dB loss in each direction (when testing bi-directionally) Fibre link length dB margin / headroom
- Attenuation/insertion loss (dB) measurement
- Encircled Flux compliant (optional). Enables compliance to the 2016 fibrestandards IEC 14763-3and ANSI/TIA- 526-14-C
- Built-in visible light source for troubleshooting
- Full Tier 1 fibre certificationComplies with TIA/ISO/IEC
- Supports all commonconnector types. SC, FC, ST adapters included. LC adapters optional
| Suitable for type of fibre | Multi mode |
| Type of connector connection 1 | SC |
| Type of connector connection 2 | SC |
| Material housing | Plastic |
| Material sleeve | Plastic |
| Type of fastening | Engage (snap) |
| Colour | Beige |
| APC-type | no |
| UPC-Version | yes |
Key Features
- Suitable for type of fibre: Multi mode
- Type of connector connection 1: SC
- Type of connector connection 2: SC
- Material housing: Plastic
- Material sleeve: Plastic
- Type of fastening: Engage (snap)
