Trend Networks NaviTEK NT Pro
Part Code: R151004
This product is no longer available. Please browse the website for alternatives or contact our Sales Team for assistance.

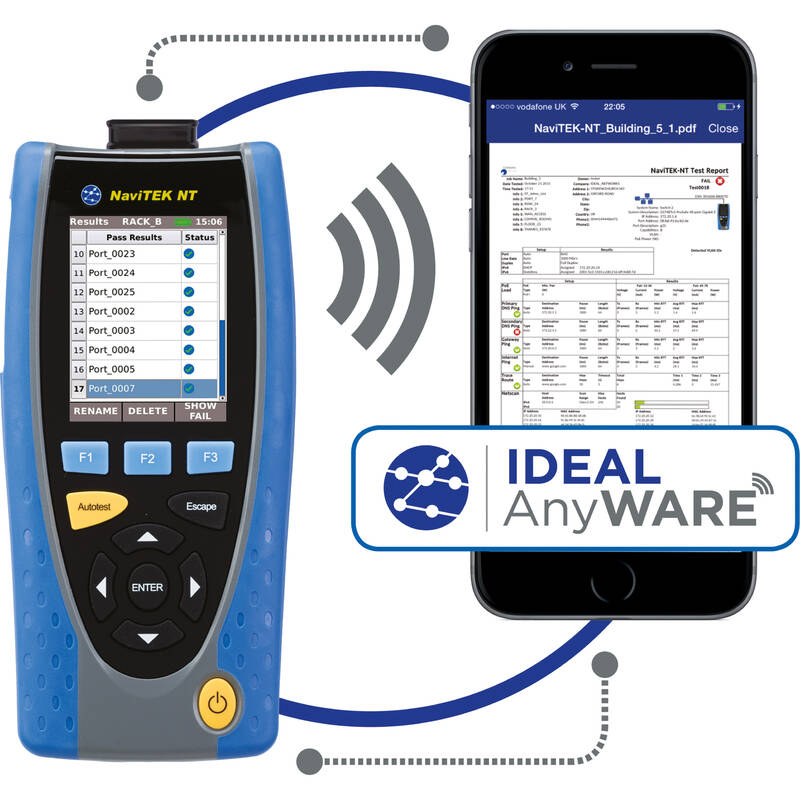

The NaviTEK NT is a network tester for troubleshooting and maintenance of active and passive copper and fibre networks. Incorporating an improved graphical interface NaviTEK NT allows network technicians to pinpoint and solve network connectivity issues faster than ever before. Subsequently, tests can be saved as pdf reports and shared with colleagues and clients using the free IDEAL AnyWare™ app.
- Test Mode SelectionA test mode selection is shown on the start screen allowing users to easily choose between Auto-detect, Cable, Switch and Network. Also in instances where switches are configured to deny any unapproved devices, the NaviTEK NT will now display LLDP/CDP port information when connected due to its passive testing mode.
- Fibre Cabling Pass/FailThe NaviTEK NT will indicate a Pass or Fail when testing fibre cabling. Clear colour coded on screen indications of Pass (Green) and Fail (Red) help technicians judge optical Rx power level more easily, as well as eliminating any guess work for technicians with limited knowledge of optical levels. The Pass/Fail threshold simply needs to be defined by the user in Setup from the main network test screen.
- Port & network summary infoPress the Autotest button to display summary information and allow for detailed inspection of network parameters.
- VLAN detection & operationAutomatic detection of VLAN ID’s allows the user to configure NaviTEK NT for operation on a VLAN.
- Ethernet utilisationReal time display of broadcast network traffic shown as a percentage of port speed for the previous 60 minutes.
- CDP/LLDP/EDP port informationShow port information using Cisco Discovery Protocol (CDP), Link Layer Discovery Protocol (LLDP) and Extreme Discovery Protocol (EDP).
- NetscanDisplay list of IP and MAC addresses of every device connected to the network.
- Network ProbeView network illustration to verify test results of each network component.
| Suitable for | Twisted Pair |
| Model | Other |
| Type of indicator | LCD |
| With PC/printer interface | yes |
| Test result storage | yes |
| Suitable for network protocol measurement | yes |
| Add-on device | yes |
| Measuring head included | yes |
Key Features
- Suitable for: Twisted Pair
- Model: Other
- Type of indicator: LCD
- With PC/printer interface: yes
- Test result storage: yes
- Suitable for network protocol measurement: yes
