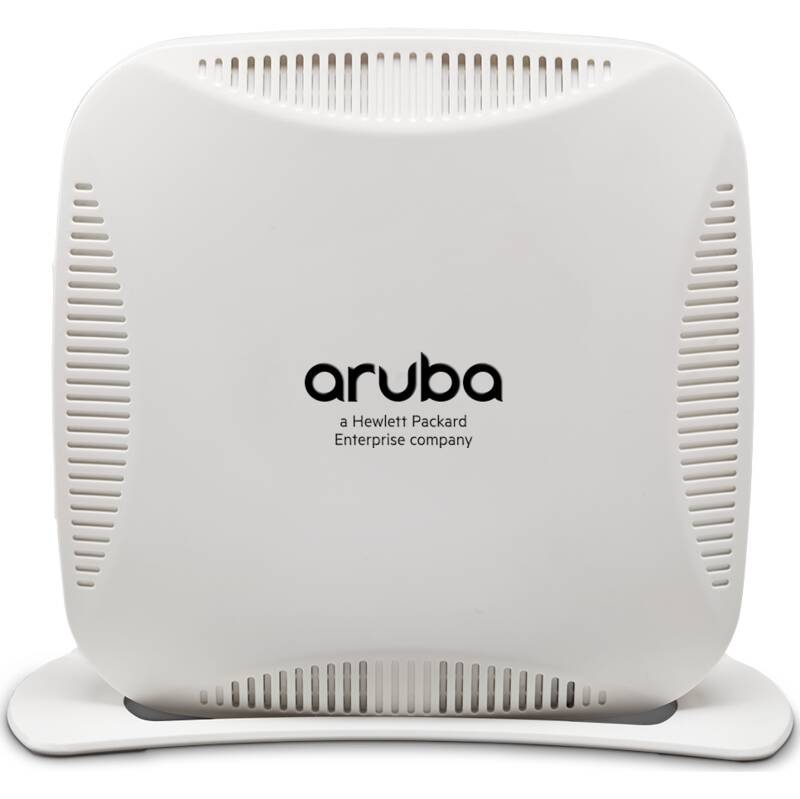

RAP-109 REMOTE AP - ROW

Part Code: JW270A

Benefits Specifications The multifunctional Aruba RAP-100 series delivers secure 802.11n wireless and wired networking to SMBs and access to corporate resources from branch and home offices.

With unmatched deployment flexibility, the RAP-100 series can operate in Aruba Instant™ mode controlled by the AirWave management platform or in controller-managed mode where all network services are centralized by Aruba Mobility Controllers.

In Aruba Instant mode, traffic is locally bridged but it still provides the flexibility of secure tunneling to Mobility Controllers.

Max. data transmission rate 300 Mbit/s
Frequency band 2.4 GHz and 5 GHz
Managed yes
Radio protocol IEEE 802.11 b/g/n
Ethernet yes
Number of ports 10/100 Mbps LAN 1
Number of ports 10/100/1000 Mbps LAN 1
VPN-security yes
Connection for external antenna no
Power over Ethernet yes
Width 160 mm
Height 160 mm
Depth 43 mm
Suitable for ceiling mounting yes
Built-in Antenna yes
Suitable for wall mounting yes
Socket outlet adapter yes

Key Features

  • Max. data transmission rate: 300 Mbit/s
  • Frequency band: 2.4 GHz and 5 GHz
  • Managed: yes
  • Radio protocol: IEEE 802.11 b/g/n
  • Ethernet: yes
  • Number of ports 10/100 Mbps LAN: 1
