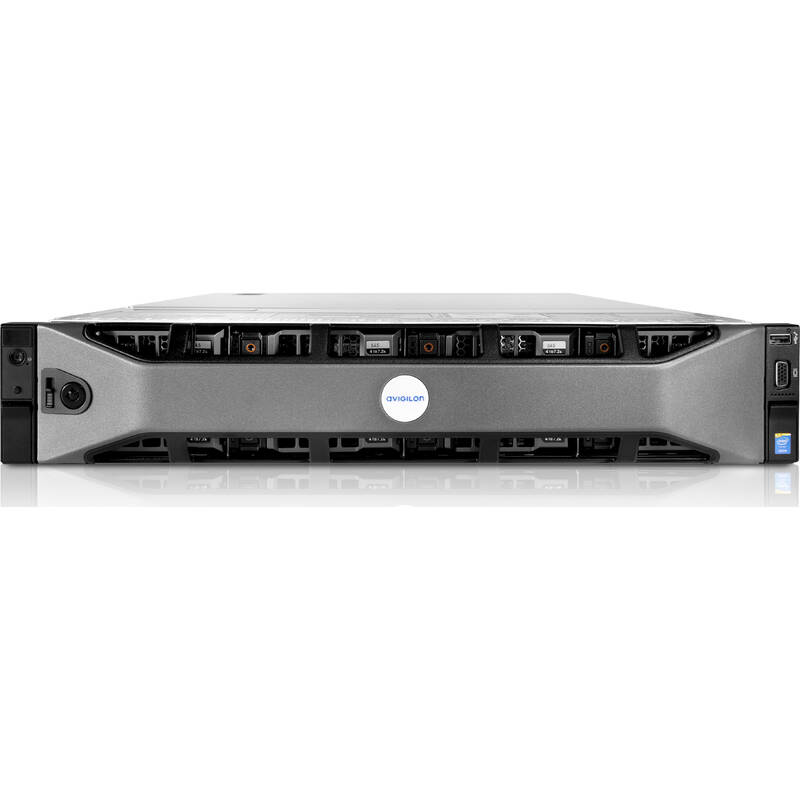

Avigilon 56tb EU HD NVR3 PRM 2u rack mount

Part Code: HD-NVR3-PRM-56TB-EU

The Avigilon HD NVR Premium is the industry’s leading high-performance, high-capacity recorder, engineered to provide maximum reliability, availability and scalability for the most demanding enterprise video management environments. Preloaded and configured with ACC high definition video management software, the HD NVR Premium is optimally designed to address the requirements of recording multiple camera streams and retaining video for long-term retention.

  • Preloaded and configured with Avigilon Control Center high definition network video management software
  • Highly scalable capacity options – up to 84TB of effective recording for long-term video retention
  • Recording of 100+ high-definition camera streams to support any large enterprise surveillance system
  • Hot-swappable components to maintain video recording and playback operations even in the event of multiple component failures
  • Separation of operating system and video storage volumes to allow independent, non-disruptive maintenance activities
  • Remote access support for system administrators
  • 2U rack mount chassis with sliding rails and cable management arm, for ease of serviceability
Recording type Digital
Device construction 482.6 mm (19 inch) mounting rack
Redundant power supply yes
Power consumption 750 W
Max. data transmission rate 1670 Mbit/s
Processor type Intel Xeon
Number of LAN-Ports 4
Number of combination-Ports RJ45/SFP 0
Power over Ethernet None
Operating systems Windows
Number of pre-licensed cameras 0
Number of hard disc bays 16
Hard Disk capacity 56 TB
RAID 0 capable yes
RAID 1 capable yes
RAID 5 capable yes
RAID 6 capable yes
Hot-swappable hard disk capability yes
Width 482.4 mm
Height 87.3 mm
Depth 716 mm
Construction Network Video Recorder (NVR)

Key Features

  • Recording type: Digital
  • Device construction: 482.6 mm (19 inch) mounting rack
  • Redundant power supply: yes
  • Power consumption: 750 W
  • Max. data transmission rate: 1670 Mbit/s
  • Processor type: Intel Xeon
