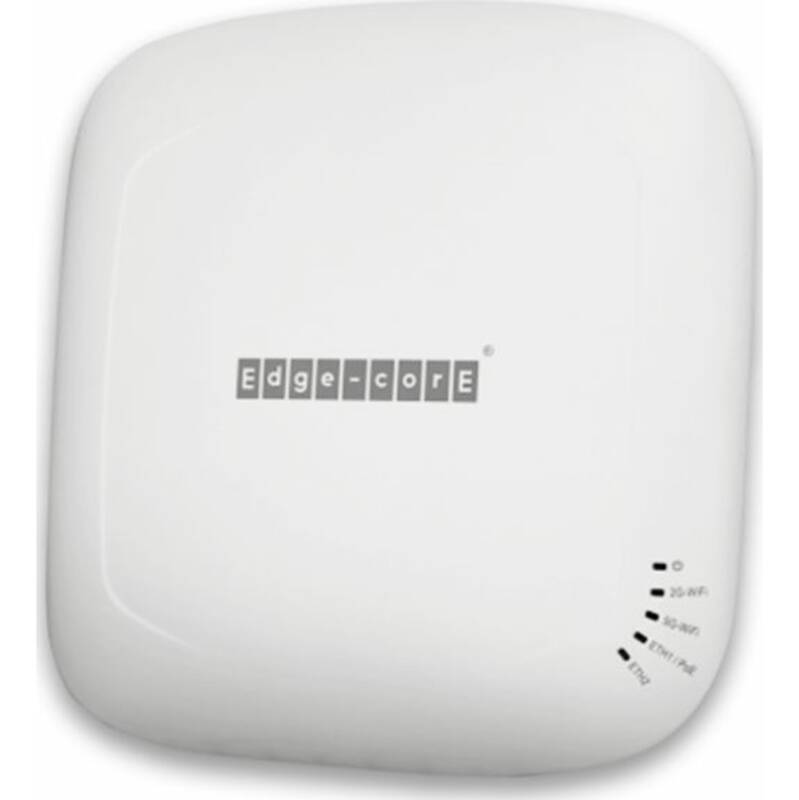

Edgecore Enterprise Grade Dual-band 802.11ac Wave 2 Indoor Access Point

Part Code: ECW5410-L-UK

This product is no longer available. Please browse the website for alternatives or contact our Sales Team for assistance.

The ECW5410-L is a concurrent dual-band 802.11ac Wave 2 high-density access point. Featuring dual 4x4 Multi-User MIMO (MU-MIMO) radios, the ECW5410-L can simultaneously support up to 600 Mbps and 1.73 Gbps data rates for both 2.4GHz and 5GHz bands, far surpassing the throughput of the latest 802.11ac Wave 1 access points. It provides a Gigabit LAN port for Ethernet-capable network devices and a built-in Bluetooth Low Energy (BLE) beacon that can be used for targeted marketing campaigns. The combination 802.11ac Wave 2 MU-MIMO technology and 4x4 spatial streams makes the ECW5410-L a top choice for high-density environments such as stadiums, arenas, and conference rooms.

  • Concurrent Dual-Band 2.4 & 5 GHz
  • 802.11ac 4x4 MU-MIMO supporting up to 2.3 Gbps data rate
  • Support up to 32 ESSIDs.
  • Enterprise-Grade Wireless Security
  • Wall and ceiling mountable
  • High Density Wi-Fi deployment
  • 802.3af PoE LAN port
  • Bluetooth Low Energy (BLE)
Max. data transmission rate 1733 Mbit/s
Frequency band 2.4 GHz and 5 GHz
Managed yes
Radio protocol IEEE 802.11 a/b/g/n/ac
Encryption WPA2
Ethernet yes
Number of ports 10/100/1000 Mbps LAN 3
Firewall yes
Power over Ethernet yes
Suitable for 19 inch mounting no
Suitable for ceiling mounting yes
Built-in Antenna yes
Pole fastening yes
Suitable for wall mounting yes

Key Features

  • Max. data transmission rate: 1733 Mbit/s
  • Frequency band: 2.4 GHz and 5 GHz
  • Managed: yes
  • Radio protocol: IEEE 802.11 a/b/g/n/ac
  • Encryption: WPA2
  • Ethernet: yes
