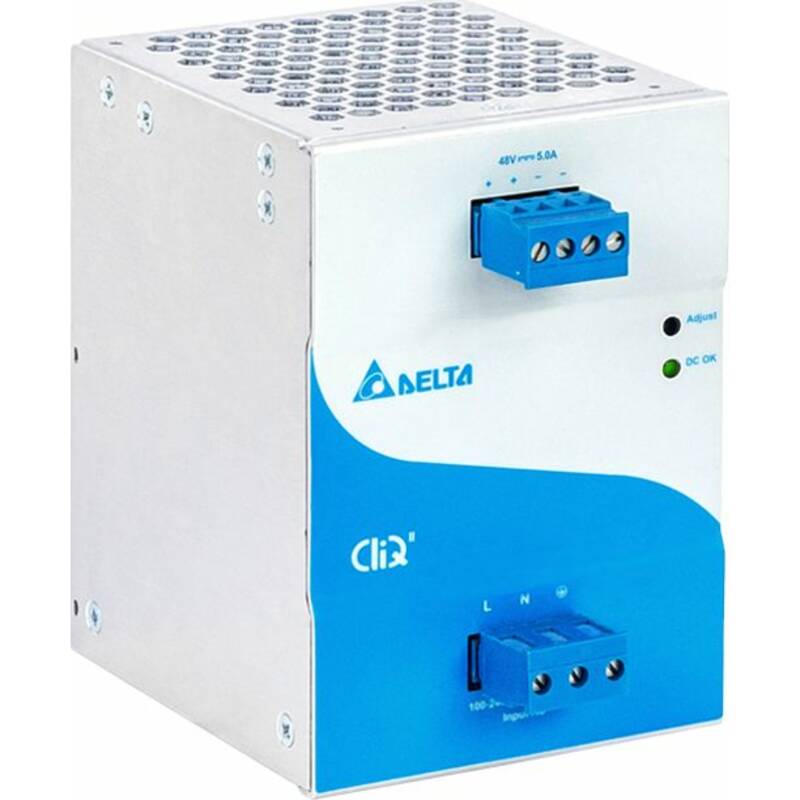

Pelco EthernetConnect 48VDC 5A Power Supply for 4 Channel PoE Applications

Part Code: ECPS-48VDC-5A

This product is no longer available. Please browse the website for alternatives or contact our Sales Team for assistance.

DIN rail power supply series from one of the world’s leading power supply companies, Delta Electronics Group, offers output voltage of 48 V. These products are encased in rugged yet lightweight full aluminium body that can withstand shock and vibration according to IEC 60068-2 standard.

The series of single phase products can operate over a wide temperature range of -25°C to +80°C. These products also feature universal AC input voltage range from 85 Vac to 264 Vac and the power will not de-rate hroughout the entire range.

  • Universal AC input voltage range
  • Power will not de-rate for the entire input voltage range
  • Power Boost of 150% for 5 seconds
  • Full corrosion resistant aluminium casing
  • Conforms to harmonic current IEC/EN 61000-3-2, Class A
  • Extreme low temperature cold start at -40°C
  • Conformal coating on PCBAs to protect against common dust and chemical pollutants
  • Hazardous Locations approval to ATEX and Class I, Div 2 (DRP048V240W1BA)
  • Certified according to IEC/EN/UL 62368-1
Voltage type of supply voltage DC
Max. output current 1 5 A
Rated supply voltage at DC 48...48 V
Power output 240 W
Type of electric plug connection Screw connection
Suitable for DIN installation panels yes
IP-rating IP20

Key Features

  • Voltage type of supply voltage: DC
  • Max. output current 1: 5 A
  • Rated supply voltage at DC: 48...48 V
  • Power output: 240 W
  • Type of electric plug connection: Screw connection
  • Suitable for DIN installation panels: yes
