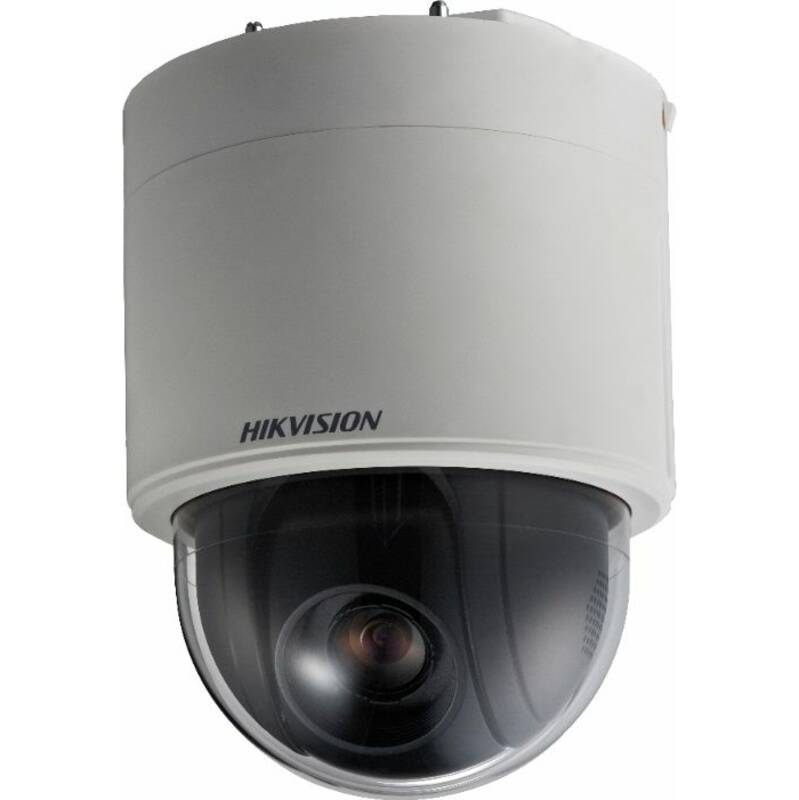

Hikvision 5-inch 2 Megapixel 25X Powered by DarkFighter Analog Speed Dome 4.8-120MM

Part Code: DS-2AE5225T-A3(D)

Hikvision DS-2AE5225T-A3(D) Turbo 5-Inch Speed Dome is able to capture high quality images in poor light environment. The embedded CMOS chip makes WDR, and real-time 1920 × 1080 resolution possible. With the help of the 25× optical zoom, and IR cut filter, the camera offers more details over an expansive area.

  • 1/2.8" HD progressive scan CMOS
  • 1920 × 1080 resolution
  • 25× optical zoom, 16× digital zoom
  • 120 dB true WDR (Wide Dynamic Range)
  • 3D intelligent positioning
  • Switchable TVI/AHD/CVI/CVBS video output
Model Pan-Tilt-Zoom
Area of application Indoor
Transmission Analogue
Power over Ethernet None
Picture system PAL/NTSC
Mounting method Ceiling
Focal range 4.8...120 mm
Colour White
Wireless no
Number of pixels (Megapixel) 2
With lens yes
With IR lamp no
Vandal-resistant no
IK Rating None
Built-in Analytics no
Horizontal field of view 57.6...2.5 °
Vertical field of view 34.4...1.4 °
Power consumption 18 W
Supply voltage 24...24 V
Voltage type AC
ONVIF-compliant no
Property picture system Colour

Key Features

  • Model: Pan-Tilt-Zoom
  • Area of application: Indoor
  • Transmission: Analogue
  • Power over Ethernet: None
  • Picture system: PAL/NTSC
  • Mounting method: Ceiling
