DH-IPC-HDBW8232EP-Z 4.1-16.4MM/S2
Image 1 of 1

DH-IPC-HDBW8232EP-Z 4.1-16.4MM/S2
Image 1 of 1

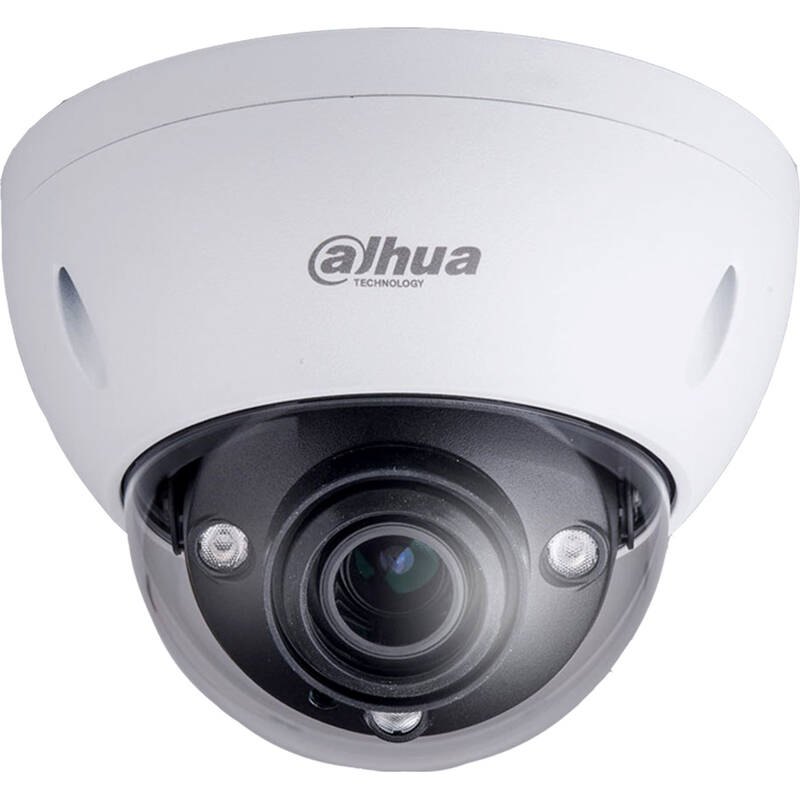

2MP Starlight IR Dome Network Camera
Part Code: DH-IPC-HDBW8232EP-Z 4.1-16.4MM/S2
Construction type | Dome shape |
Number of pixels (Megapixel) | 2 |
Focal range | 4...116.4 mm |
Suitable for wall mounting | yes |
Suitable for ceiling mounting | yes |
Suitable for outdoor use | yes |
Protocol | TCP/IP |
Power over Ethernet | 802.3 at (PoE+) |
Property picture system | Colour |
With IR lamp | yes |
Max. infrared reach | 50 m |
Number of digital inputs | 1 |
Number of digital outputs | 1 |
Number of audio inputs | 1 |
Number of audio outputs | 1 |
Vandal-resistant | yes |
IK Rating | IK10 |
IP-rating | IP67 |
Horizontal field of view | 92...32 ° |
Vertical field of view | 53...18 ° |
Power consumption | 18 W |
Colour | White |
Key Features
- Construction type: Dome shape
- Number of pixels (Megapixel): 2
- Focal range: 4...116.4 mm
- Suitable for wall mounting: yes
- Suitable for ceiling mounting: yes
- Suitable for outdoor use: yes
