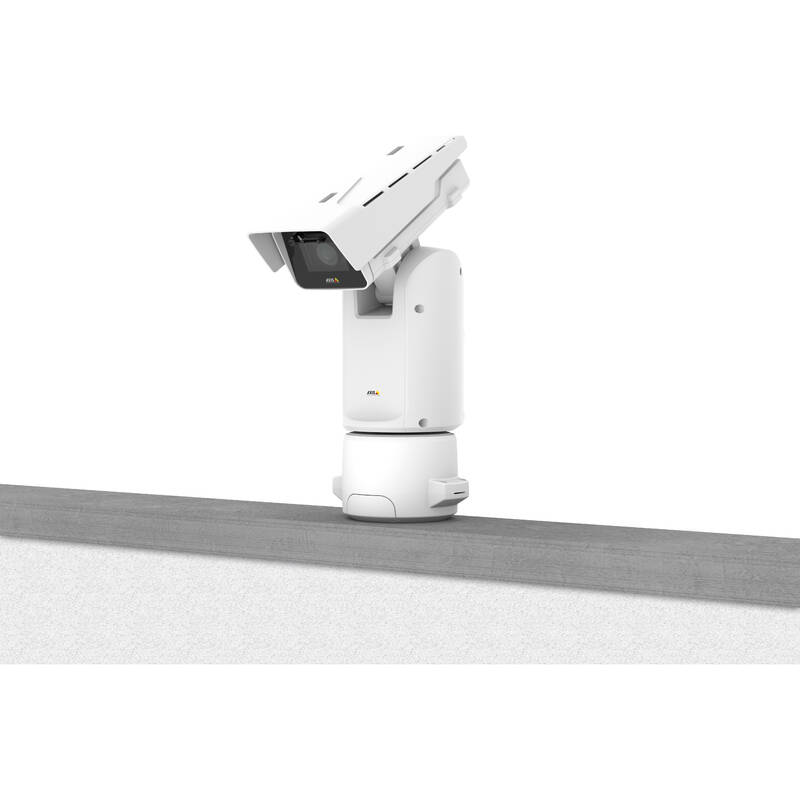

AXIS 2 Megapixel Q8685-E PTZ Network Camera 4.3-129 mm
Part Code: AXIS Q8685-E 24V AC/DC
AXIS Q8685-E is a highly responsive and reliable positioning camera, designed for continuous and jerk-free pan/tilt movements (360 endless and 135 from ground to sky). When column-mounted, it enables a 360 unobstructed field of view. AXIS Q8685-E pr ovides HDTV 1080p video quality, 30x zoom, WDR - forensic capture, focus recall and Zipstream. It features both RJ45 and SFP interfaces, enabling a long-distance fiber connection with a failover network link. Capable of operating in extreme temperature s, withstanding hurricane-strength winds and including an integrated long-life wiper removing raindrops, dirt and grime, AXIS Q8685-E is ideal for a wide range of adverse environmental conditions.
- Outstanding image quality with Forensic WDR and OptimizedIR
- Remote zoom and focus
- Lightfinder
- Axis’ Zipstream technology
Model | Pan-Tilt-Zoom |
Mounting method | Other |
Area of application | Outdoor |
Protocol | TCP/IP |
Power over Ethernet | None |
Property picture system | Colour |
Focal range | 4.3...129 mm |
Colour | White |
Wireless | no |
Number of pixels (Megapixel) | 2 |
With lens | yes |
With IR lamp | no |
Vandal-resistant | yes |
IK Rating | IK10 |
Built-in Analytics | yes |
IP-rating | IP66 |
Horizontal field of view | 65.6...2 ° |
Vertical field of view | 39...1.2 ° |
Power consumption | 204 W |
ONVIF compliant | yes |
Key Features
- Model: Pan-Tilt-Zoom
- Mounting method: Other
- Area of application: Outdoor
- Protocol: TCP/IP
- Power over Ethernet: None
- Property picture system: Colour
