AXIS Q3505-SVE 22MM MKII
Image 1 of 1
D/N FIXED DOME ST STEEL-9-22MM P-IRIS LENS OUT
Part Code: AXIS Q3505-SVE 22MM MKII

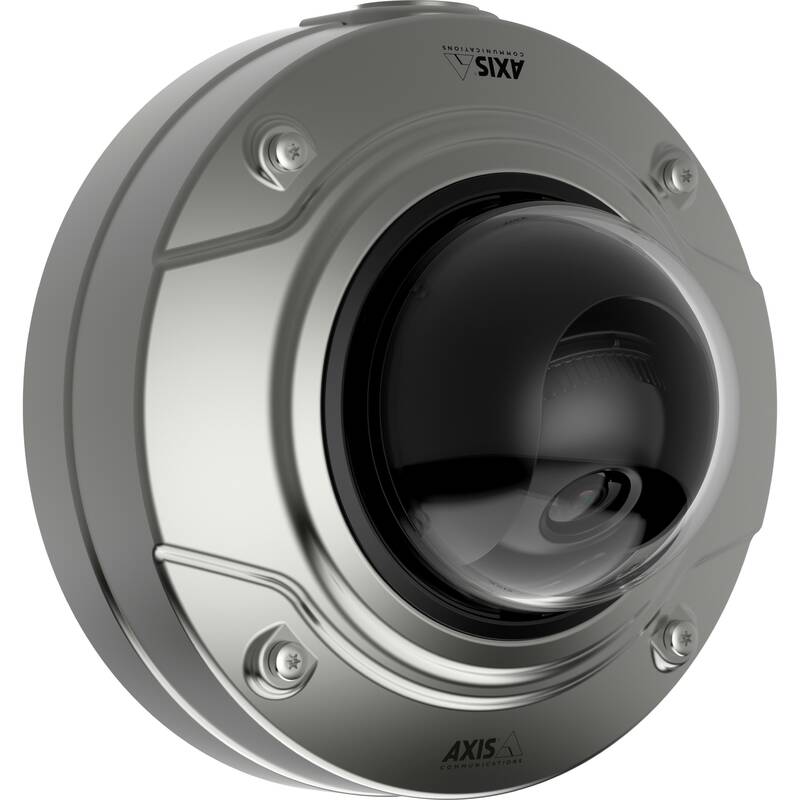

AXIS Q3505-SVE Mk II is a fixed dome in a marine-grade stainless steel casing with a nylon dome, ideal for harsh installations. Its top quality image sensor and enhanced processing with Lightfinder provide exceptional light sensitivity and Wide Dynamic Range - Forensic Capture. Electronic image stabilization is instrumental when the camera is subject to vibration, resulting in smoother and steadier video. Easy-to-install with features such as smart conduit connection and cable management, as well as remote zoom and focus that eliminates the need for hands-on fine tuning. All together, the camera is resistant to corrosion, salt water, chemicals and detergents.
- Marine-grade stainless steel (SS 316L) and IK10+ impact resistance
- Lightfinder and WDR – Forensic Capture
- HDTV 1080p at up to 60 fps or 720p at up to 120 fps
- Axis Zipstream technology
- Electronic Image Stabilization
Construction | Dome |
Area of application | Outdoor |
Transmission | TCP/IP |
Power over Ethernet | 802.3 af (PoE) |
Mounting method | Wall/ceiling |
Focal range | 9...22 mm |
Colour | Other |
Wireless | no |
Number of pixels (Megapixel) | 2 |
With IR lamp | no |
Number of audio inputs | 1 |
Number of audio outputs | 1 |
Vandal-resistant | no |
IK Rating | IK10 |
Built-in Analytics | yes |
IP-rating | Other |
Horizontal field of view | 36...15 ° |
Vertical field of view | 19...9 ° |
ONVIF-compliant | yes |
Property picture system | Colour |
Key Features
- Construction: Dome
- Area of application: Outdoor
- Transmission: TCP/IP
- Power over Ethernet: 802.3 af (PoE)
- Mounting method: Wall/ceiling
- Focal range: 9...22 mm
