Discreet HDTV 720p video surveillance with built-in IR illumination

Part Code: AXIS M3104-L

This product is no longer available. Please browse the website for alternatives or contact our Sales Team for assistance.

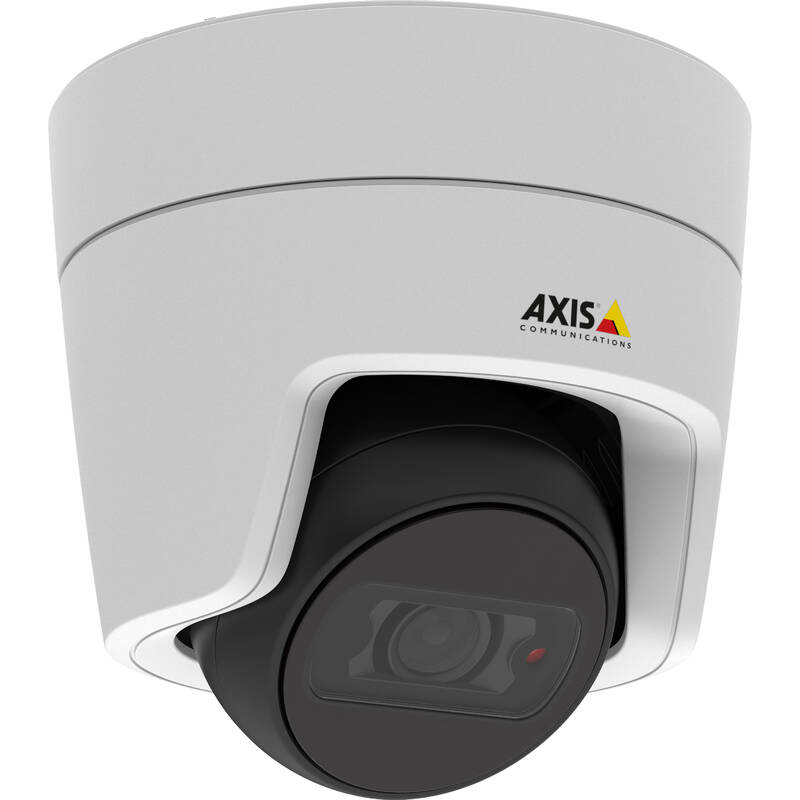

AXIS M3104-L is an affordable, discreet fixed mini dome with a flat-faced design that suppresses reflections. Using WDR technology and IR illumination, it provides compact HDTV surveillance even in challenging light conditions or total darkness. The smart design allows for easy repainting, or using the optional black accessory casing to blend the camera into its environment. Axis Zipstream technology reduces bandwidth and storage requirements. A variety of accessories are available for flexible and easy installation.

  • Built-in IR illumination
  • HDTV 720p video
  • WDR – Forensic Capture
  • Axis’ Zipstream technology
  • Smart design for easy, flexible installation
Mounting method Wall/ceiling
Area of application Indoor
Protocol TCP/IP
Power over Ethernet 802.3 af (PoE)
Property picture system Colour
Focal range 2.8...2.8 mm
Colour White
Wireless no
Number of pixels (Megapixel) 1
With IR lamp yes
Max. infrared reach 15 m
Vandal-resistant no
Built-in Analytics yes
IP-rating IP42
Horizontal field of view 80...80 °
Vertical field of view 45...45 °
Power consumption 6.2 W
Diameter 100 mm
Height 85 mm
ONVIF compliant yes
Construction Mini Dome

Key Features

  • Mounting method: Wall/ceiling
  • Area of application: Indoor
  • Protocol: TCP/IP
  • Power over Ethernet: 802.3 af (PoE)
  • Property picture system: Colour
  • Focal range: 2.8...2.8 mm
