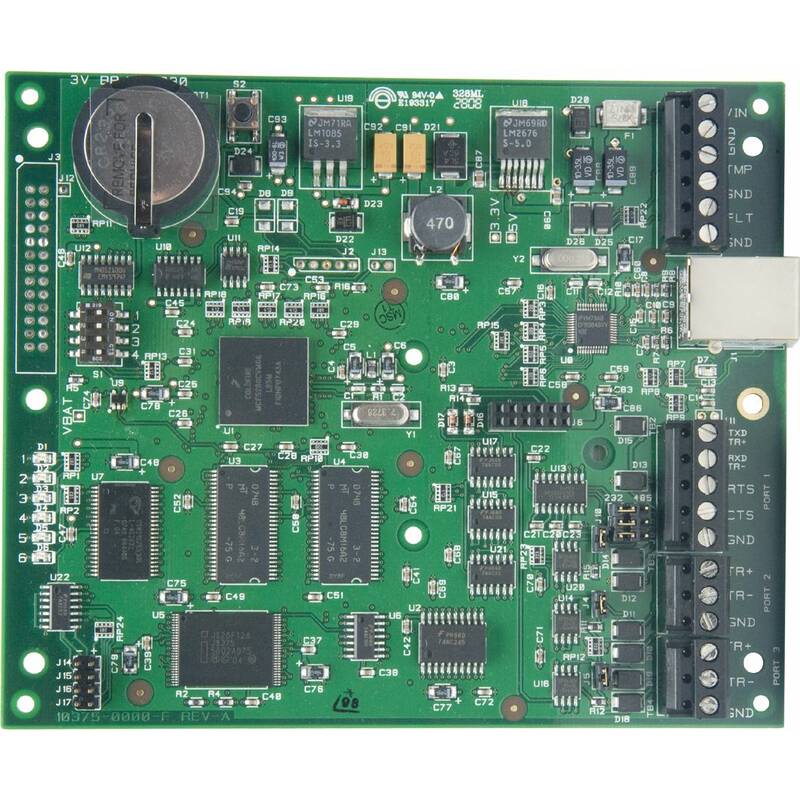

64-Door Controller 32MB RAM Ethernet (Mercury EP2500)
Part Code: AC-MER-CONT-64DR
The AC-MER-CONT-64DR is a powerful, intelligent controller solution for managing up to sixty-four (64) readers with Avigilon’s Access Control Manager (ACM). Based on the Mercury Security (EP2500), the AC-MER-CONT-64DR communicates with ACM via its on-board Ethernet port. The AC-MER-CONT- 64DR includes two (2) downstream RS-485 ports to easily connect input, output and reader modules for up to thirty-two (32) device addresses. Offering powerful flexibility the AC-MER-CONT-64DR is capable of interfacing with a wide array of reader technologies. The result is the flexibility, versatility and reliability required for demanding access control solutions. Access Control Manager and Mercury Security open field hardware provide the ultimate platform to complete the Avigilon end-to-end security solution.
- Capacity for up to 64 doors
- Decentralizes system intelligence
- Network ready
- Provides full local processing
- Interfaces with a wide array of reader technologies including Wiegand, clock and data, magnetic stripe and keypads
- Support for up to thirty-two (32) device addresses through the on board RS- 485 communication ports
- Support for the AC-MER-CON-MR50, AC-MER-CON-MR52, AC-MER-CONMR16IN and the AC-MER-CON-MR16OUT
- Supports for the AC-MER-CON-MR51E over Ethernet
| Standalone | no |
| Networkable | yes |
| Max. number of doors | 64 |
| Type of interface | Ethernet |
| Mounting method | Other |
| Operation temperature | 0...70 °C |
| Colour | Green |
| Model | Control unit |
| Material | Other |
| Power over Ethernet | None |
| Width | 127 mm |
| Height | 25 mm |
| Depth | 152 mm |
Key Features
- Standalone: no
- Networkable: yes
- Max. number of doors: 64
- Type of interface: Ethernet
- Mounting method: Other
- Operation temperature: 0...70 °C
