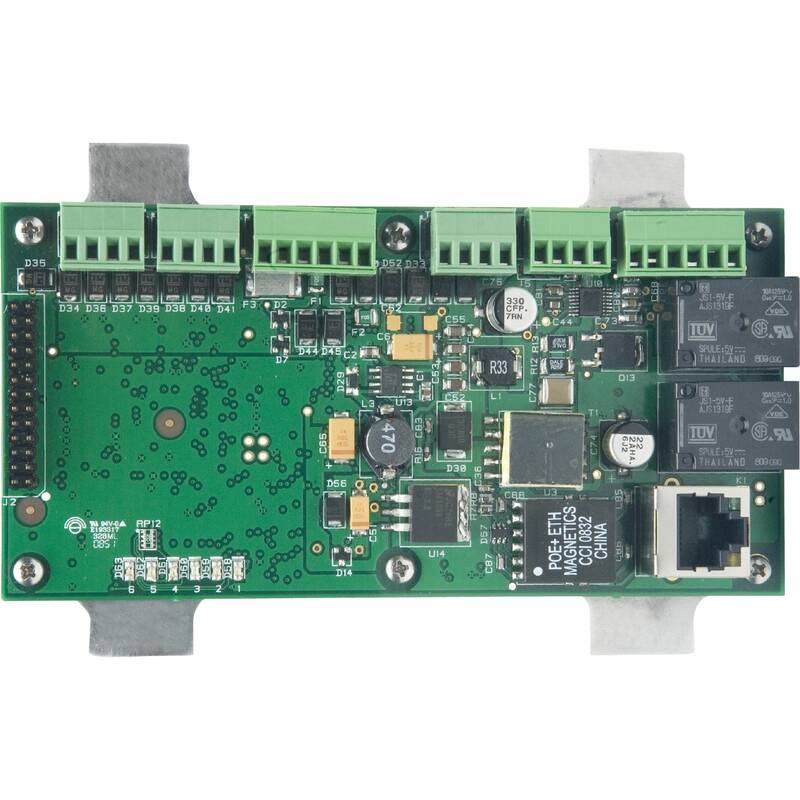

Single Door Interface Module w/PoE with 2 reader: mag/wiegand, 4 inputs and 2 relays (Mercury Part Number: MR51e)
Part Code: AC-MER-CON-MR51E
The AC-MER-CON-MR51E is a high performance PoE capable network connected device for managing one (1) controlled opening (single or paired readers) with Avigilon’s Access Control Manager (ACM). Based on the Mercury Security (MR51e), each AC-MER-CON-MR51E will interface up to two (2) card readers (in/out), four (4) generalpurpose input monitor points and two (2) control relays. The AC-MER-CON-MR51E provides access control and security monitoring through the ACMER-CONT-1DR, AC-MER-CONT-2DR or the ACMER-CONT-64DR intelligent controllers. The result is the flexibility, versatility and reliability required for demanding access control solutions. Access Control Manager and Mercury Security open field hardware provide the ultimate platform to complete the Avigilon end-to-end security solution.
- PoE enabled Network ready interface panel
- Suitable for single door or in/out reader applications
- Interfaces with a wide array of reader technologies including Wiegand, clock and data, magnetic stripe and keypads
- Triple gang footprint
- Inputs and the output relays support assignment to door related functions or to general purpose I/O
- Inputs support normally open, normally closed, supervised and nonsupervised circuits
- Output relays are configurable for fail-safe or fail secure operation
| Model | Control unit |
| Standalone | no |
| Networkable | yes |
| Max. number of doors | 1 |
| Type of interface | Ethernet |
| Power over Ethernet | 802.3 af (PoE) |
| Operation temperature | 0...70 °C |
| Colour | Green |
| Material | Other |
| Width | 140 mm |
| Height | 24 mm |
| Depth | 70 mm |
Key Features
- Model: Control unit
- Standalone: no
- Networkable: yes
- Max. number of doors: 1
- Type of interface: Ethernet
- Power over Ethernet: 802.3 af (PoE)
