AC-MER-CON-MR50
Image 1 of 1
AC-MER-CON-MR50
Image 1 of 1

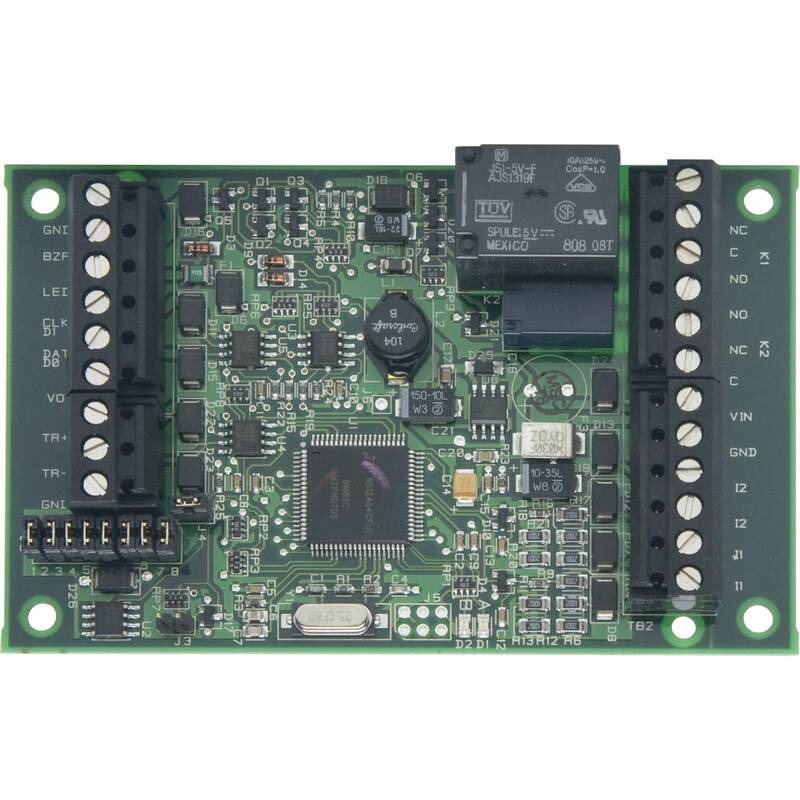

The AC-MER-CON-MR50 is a low cost, high performance, single card reader, interface panel that is capable of all the I/O needed for managing a single (1) controlled opening with Avigilon’s Access Control Manager (ACM). Based on the Mercury Security (MR50), each AC-MER-CON-MR50 will interface one (1) card reader, two (2) generalpurpose input monitor points and two (2) control relays to provide access control andv security monitoring through the AC-MER-CONT-1DR, ACMER-CONT-2DR or the AC-MER-CONT-64DR intelligent controllers. The result is the flexibility, versatility and reliability required for demanding access control solutions. Access Control Manager and Mercury Security open field hardware provide the ultimate platform to complete the Avigilon endto-end security solution.
| Model | Control unit |
| Standalone | no |
| Networkable | yes |
| Max. number of doors | 2 |
| Type of interface | Ethernet |
| IP-rating | IP00 |
| Width | 108 mm |
| Height | 25 mm |
| Depth | 70 mm |
