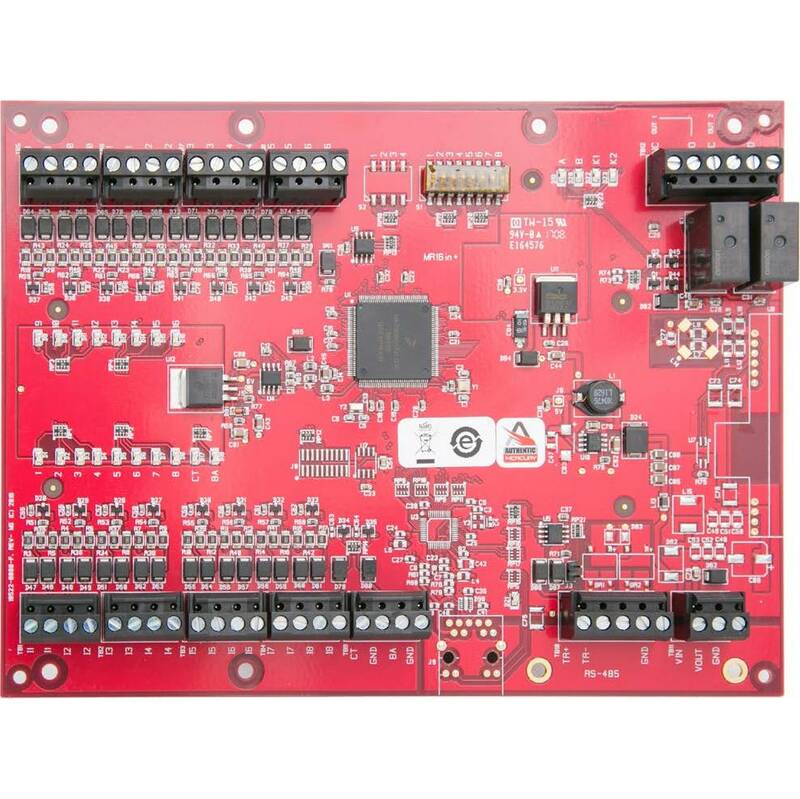

16 Zone Input Monitor Module (with 2 relays) (Mercury MR16IN-S3)
Part Code: AC-MER-CON-MR16IN
The Mercury Security AC-MERCONT-MR16in Series 3 from Avigilon is an enhanced, high performance, reliable interface panel for monitoring high concentrations of inputs with the Access Control Manager system. It offers an improved processor and increased memory with an embedded crypto memory chip for encryption support - enabling organizations to stay ahead of internal and external threats to achieve data security.
Each AC-MER-CONT-MR16in supports 16 general-purpose drycontact inputs, configurable to be individually set for normally open, normally closed, supervised and non-supervised circuits. The ACMER-CON-MR16in provides access control and security monitoring through the AC-MER-CONT-1DR, AC-MER-CONT-2DR or the ACMER-CONT-64DR intelligent controllers. The result is the flexibility, versatility and reliability required for demanding access control solutions.
The Access Control Manager system and Mercury Security Series 3 open field hardware provides the ultimate platform to complete the Avigilon physical access control security solution.
- Compact footprint and RS-485 connectivity
- 12 or 24V DC input power support
- Supports being clustered or distributed to best suit the installation environment
- Two programmable Form C relay outputs are configurable for fail-safe or fail secure operation, supporting "On", "Off", and "Pulse"
- Inputs and the output relays support assignment to door related functions or to general purpose I/O
- Inputs support normally open, normally closed, supervised and non-supervised circuits
- Output relays are configurable for fail-safe or fail secure operation
- Capable of controlling outboard devices, by the condition of selected system devices locally without ACM intervention
| Mounting method | Other |
| Operation temperature | 0...70 °C |
| Colour | Red |
| Model | Control unit |
| Material | Other |
| Width | 152 mm |
| Height | 25 mm |
| Depth | 203 mm |
Key Features
- Mounting method: Other
- Operation temperature: 0...70 °C
- Colour: Red
- Model: Control unit
- Material: Other
- Width: 152 mm
