AC-HID-VERTX-V200
Image 1 of 1
AC-HID-VERTX-V200
Image 1 of 1
The HID VertX® products provide a complete and fully featured hardware/firmware infrastructure for access control software host systems.

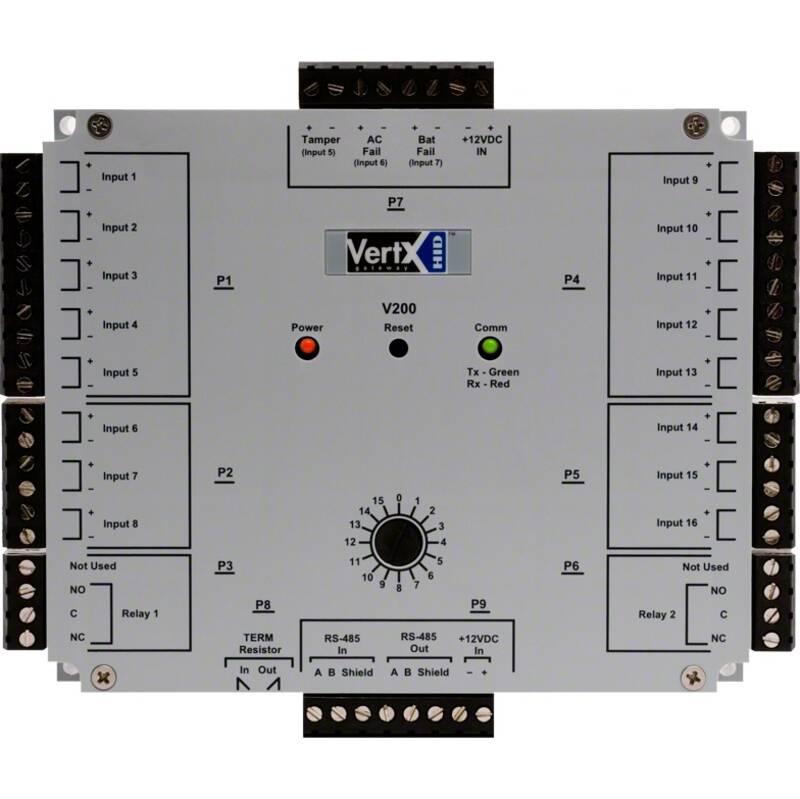

The V200 input monitor interface connects up to 16 supervised input circuits. Each input point monitors and reports normal, off-normal, and alarm states. The V200 features on-board flash memory, allowing program updates to be downloaded through the network. The V200 connects to the V1000 via a high speed RS-485 network. The V1000, in turn, communicates with the system host via industry standard TCP/IP protocol, over 10/100 Mbps Ethernet, or the Internet. This architecture minimizes the impact on corporate LANs, by using only one TCP/IP address for every 32 interfaces, and by handling low-level transactions on the RS-485 network.
| Model | Control unit |
| Operation temperature | 0...50 °C |
| Material | Plastic |
| Width | 147.32 mm |
| Height | 122.55 mm |
| Depth | 32.38 mm |
